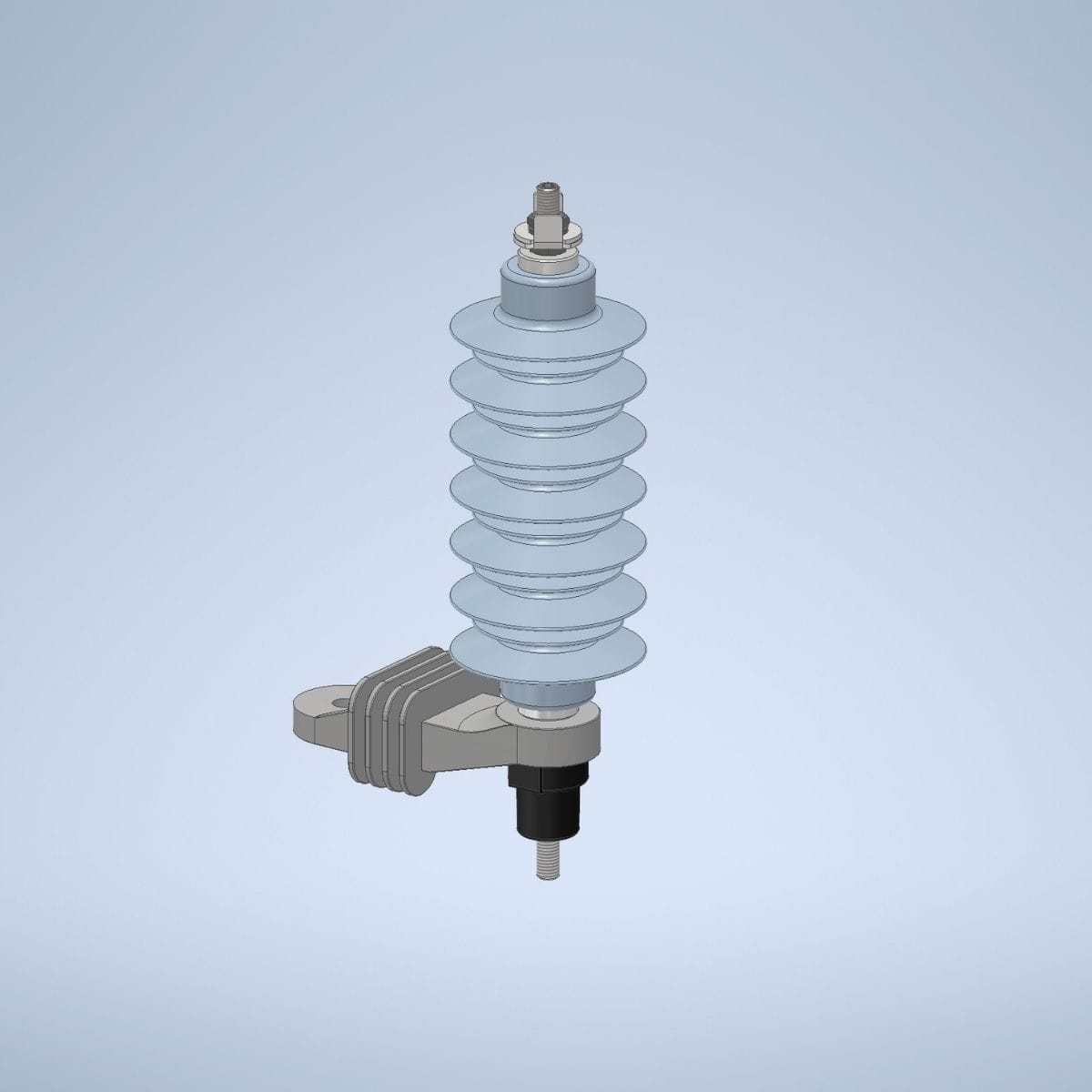

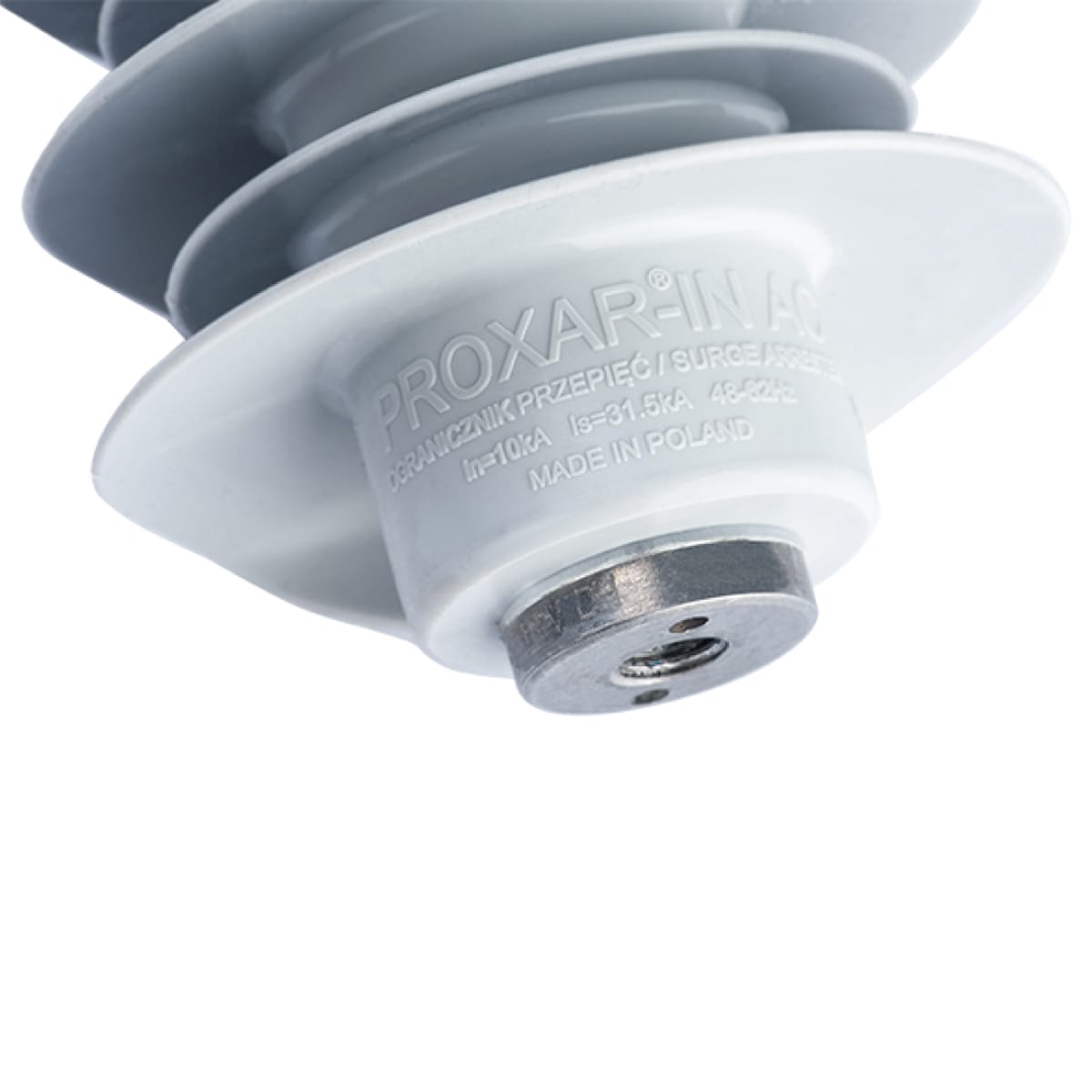

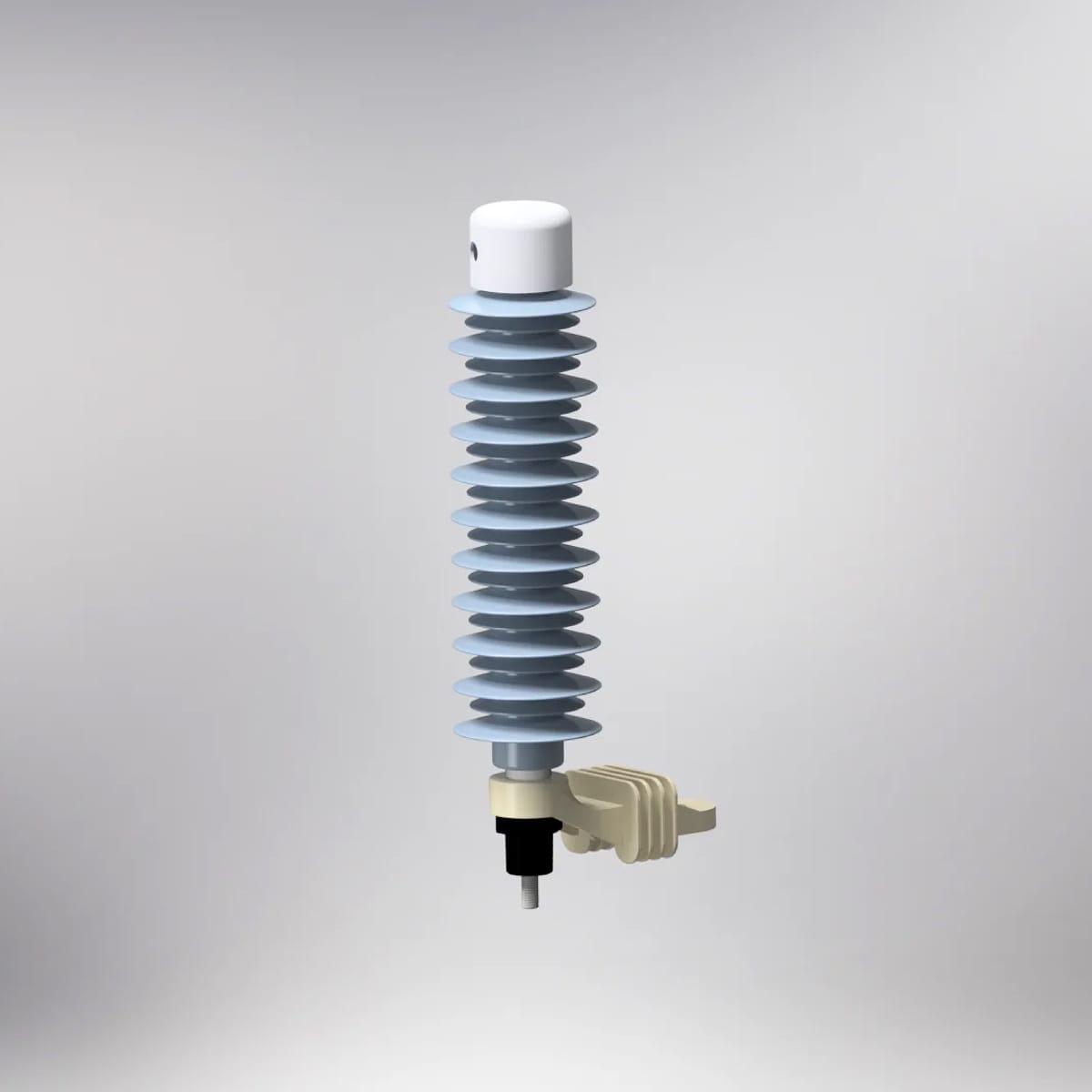

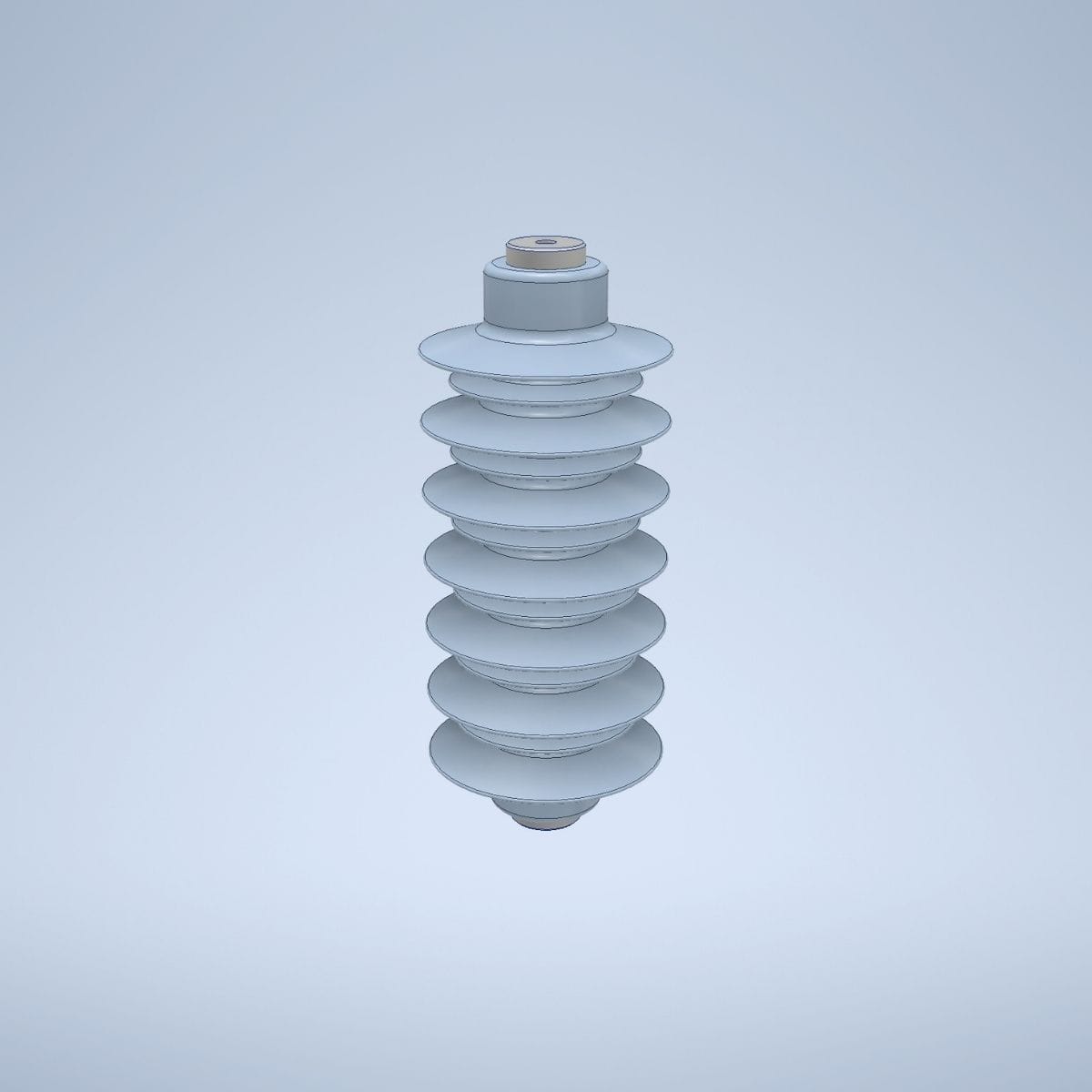

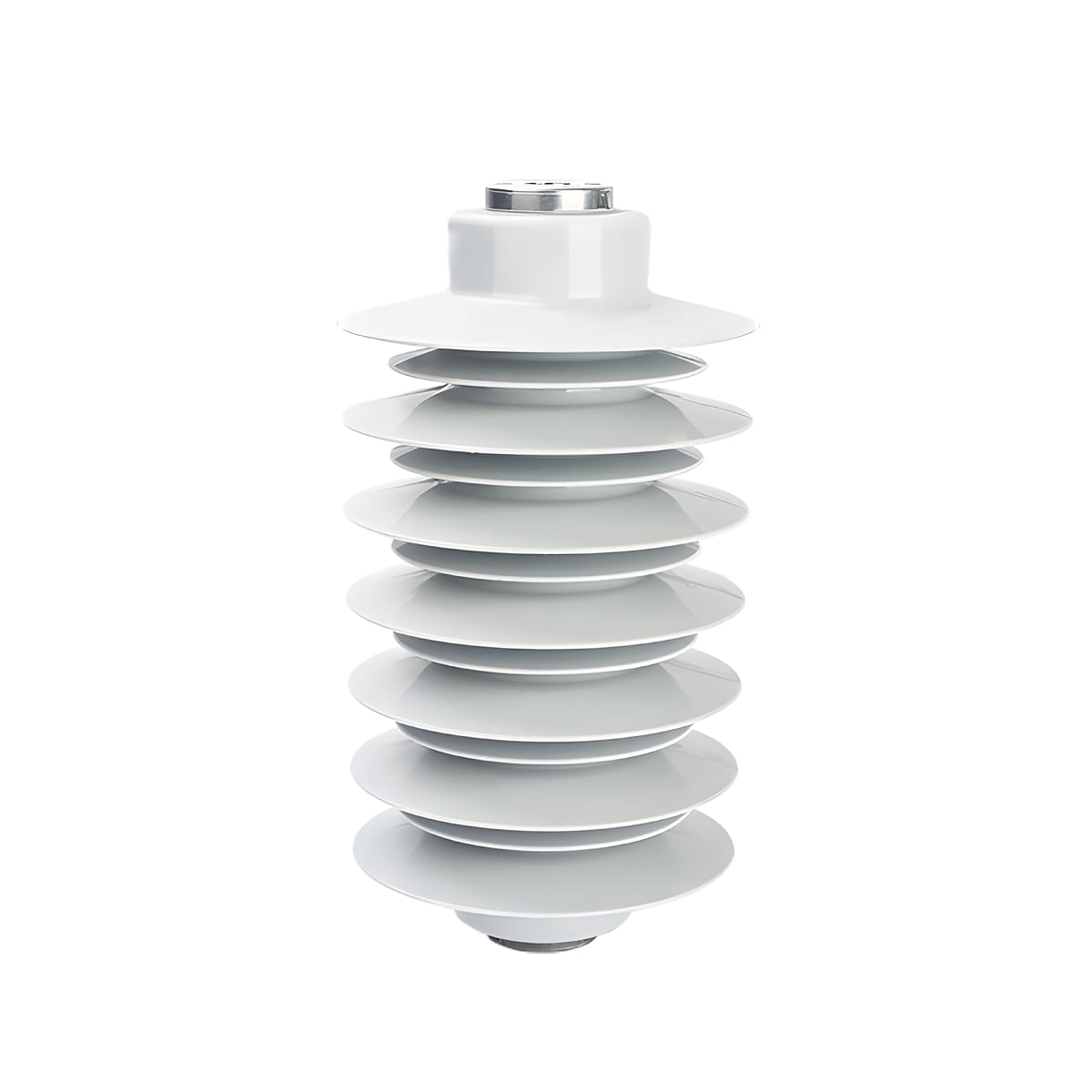

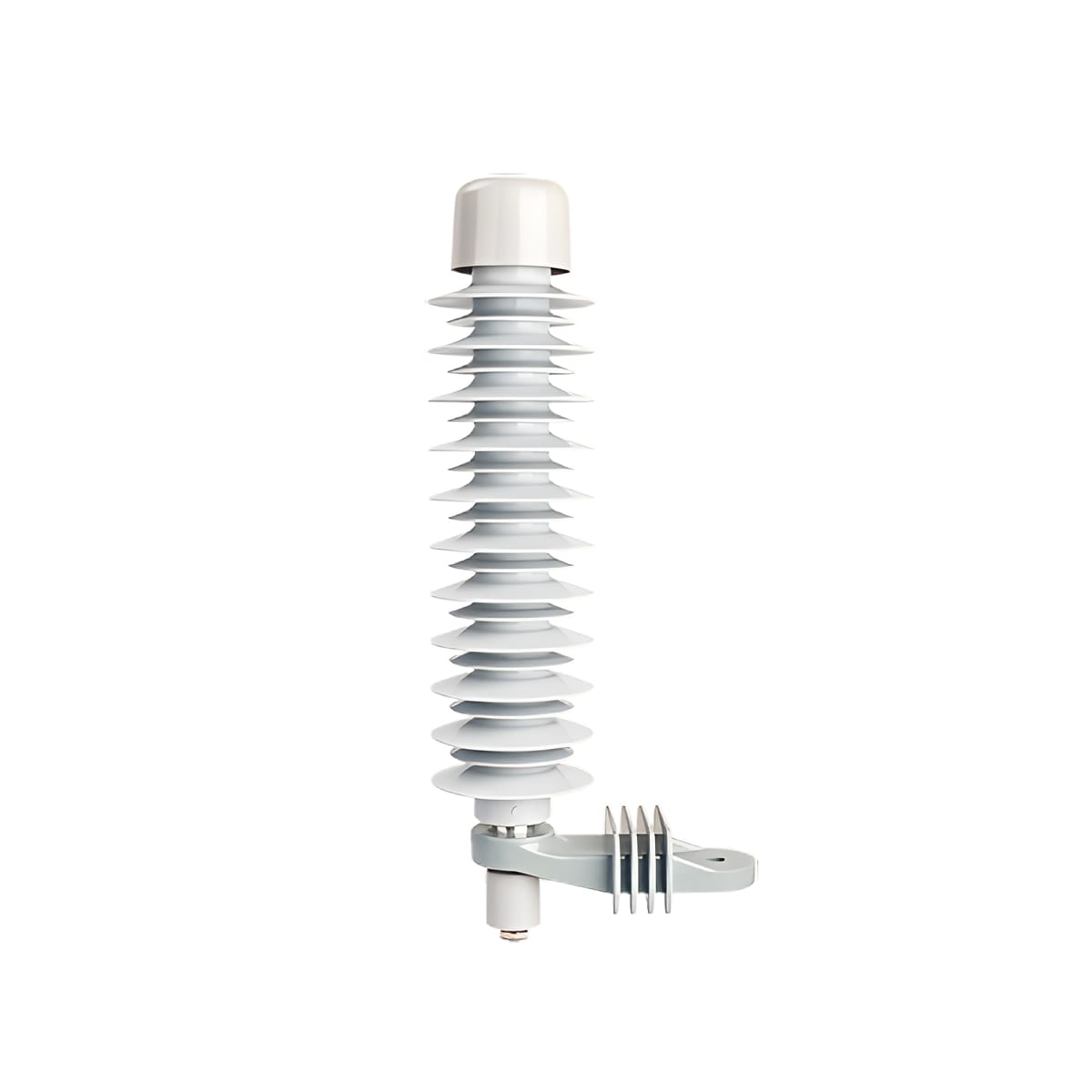

PROXAR–IN AC medium voltage surge arrester in silicone housing

Application

PROXAR-IN AC medium voltage surge arresters with silicone housing are distribution-class devices designed for operation in the 1.2 kV to 48 kV range. They protect AC power networks (overhead lines, substations, and transformers) against repeated lightning strikes and switching surges.

Product inquiry
Working conditions Advantages Electrical data Mechanical data Technical drawings Downloads Additional equipment Related products

Search

All products

Working conditions

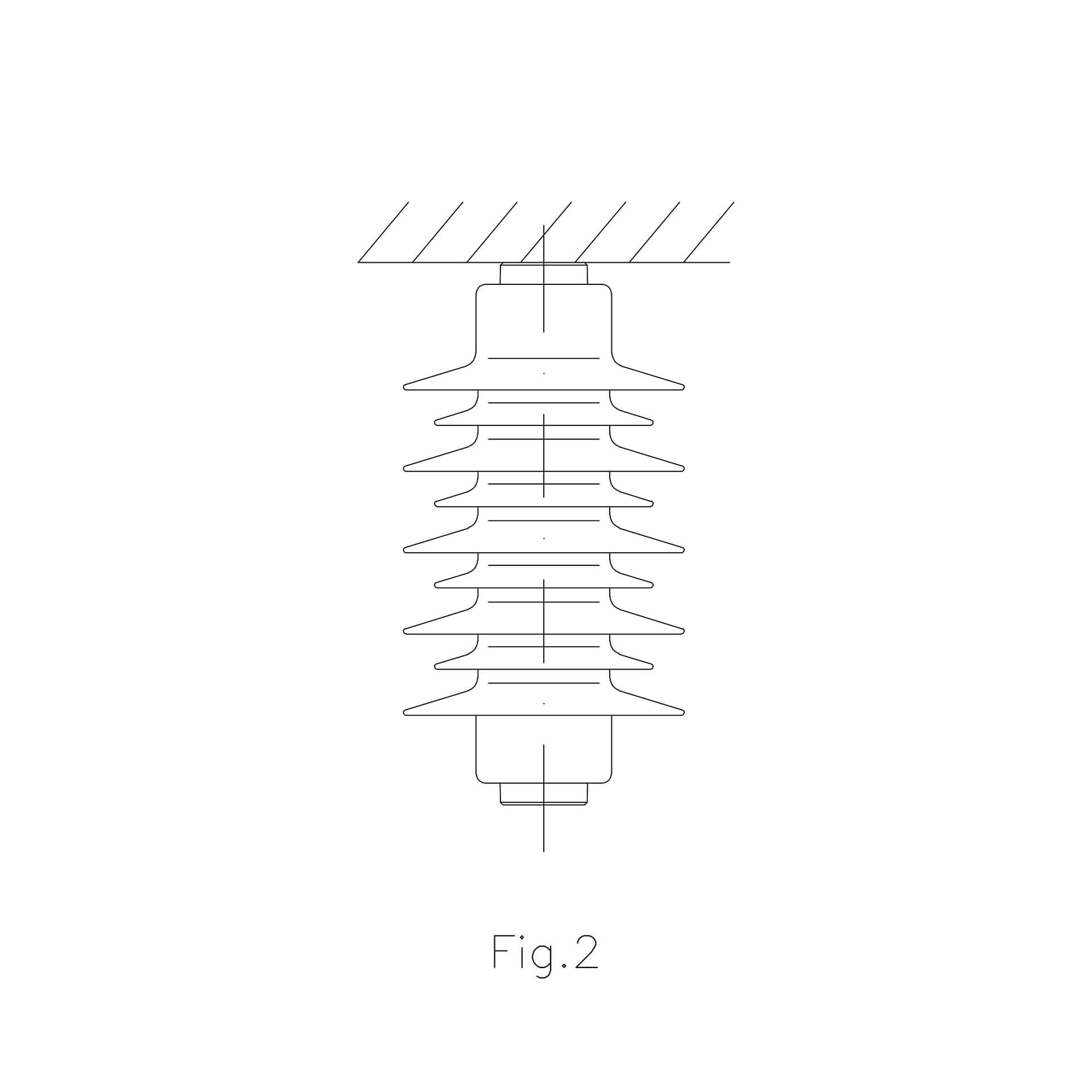

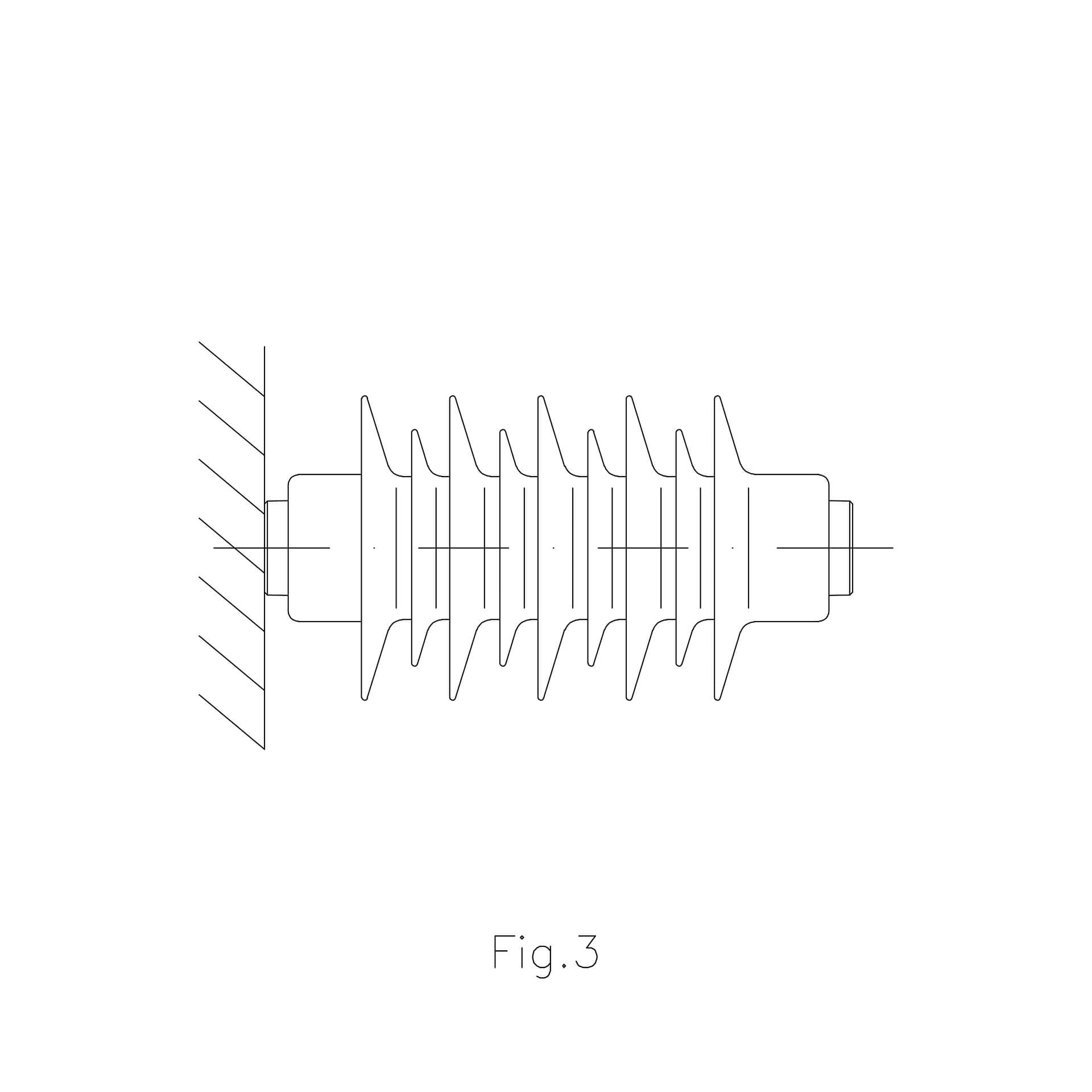

PROXAR-IN AC arresters are suitable for indoor and outdoor use in temperate and tropical climates at altitudes up to 1000 m above sea level. They can be mounted horizontally, vertically, or inverted. A wide range of accessories is available for PROXAR-IN AC surge arresters.

Advantages

  • Highly effective surge protection
  • Excellent energy resistance thanks to high absorption capacity
  • Stable electrical performance even after multiple surges
  • Suitable for polluted environments
  • High resistance to environmental damage
  • High short-circuit withstand capability
  • Durable and reliable under varied environmental conditions
  • Resistant to shocks and vibrations
  • Easy to install and maintenance-free
  • Lightweight
  • Easy to transport and store

Electrical data

Arrester classification according to PN-EN 60099-4:2015
DH (Distribution High)
Line discharge class according to IEC 60099-4:2009
Class 1
System voltage (Us)
3.6–36 kV
Rated voltage (Ur)
1.2–48 kV
Nominal discharge current In 8/20 µs
10 kA
High current impulse Ihc 4/10 µs
100 kA
Rated repetitive charge transfer rating Qrs
0.4 C
Rated thermal Energy Qth
1.1 C
Long duration current impulse resistance (2000 µs)
325 A
Short circuit rating
31.5 kA/0.2 s
Maximal level of partial discharges
≤5 pC
Service conditions
Value
Ambient temperature
-45°C to +60°C
Max altitude
1000 m
Frequency
48–62 Hz
If you require other parameters, please contact us

If you require other parameters, please contact us

Get in touch

Mechanical data

SLL specified long-term load
210 Nm
SSL specified short-term load
336 Nm
Torque
50 Nm

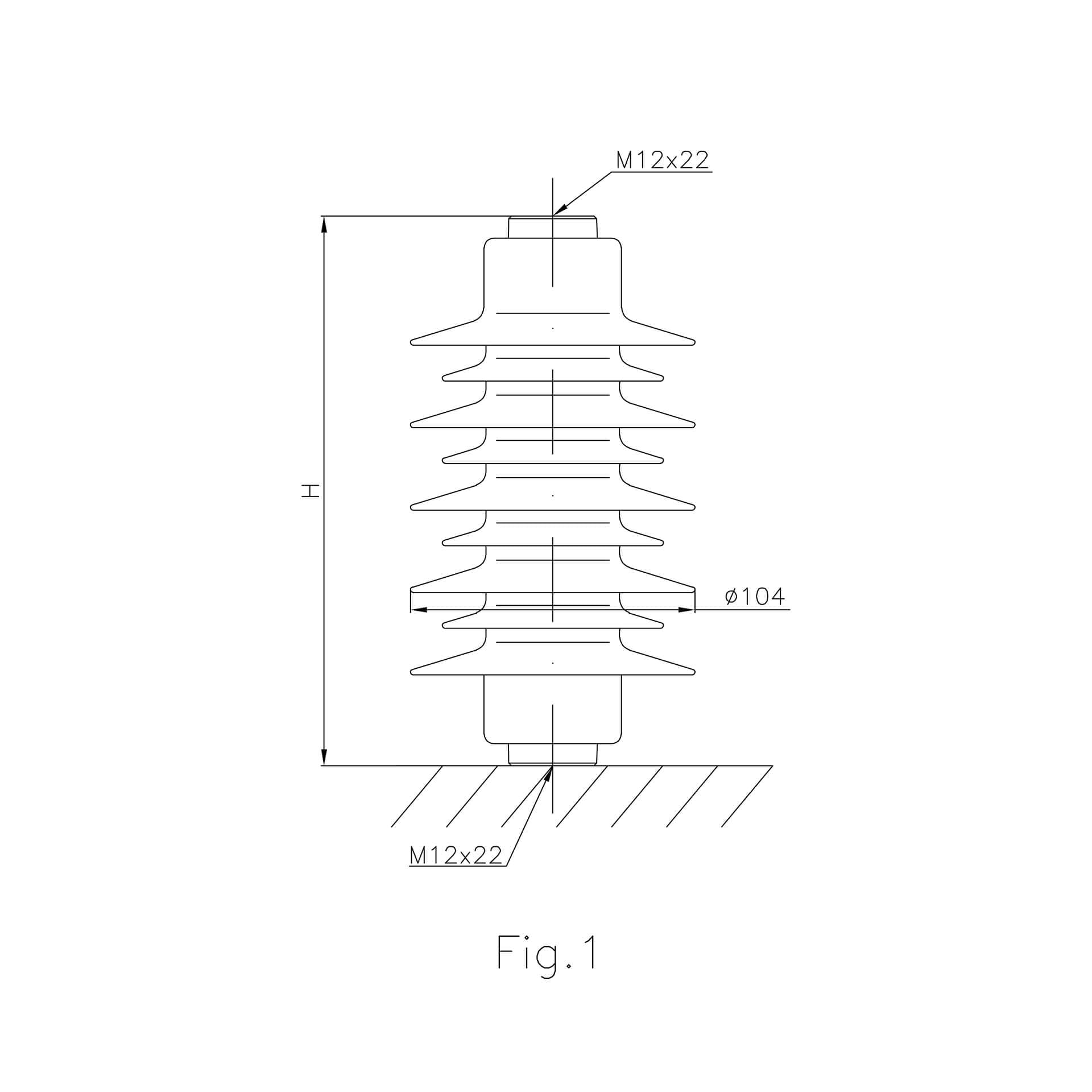

Technical drawings

Please contact us for drawings of specific executions

Please contact us for drawings of specific executions

Get in touch

Downloads

Data sheet Download PDF

Download PDF

Certificate of conformity Download PDF

Download PDF

Installation and operating instruction

Download PDF

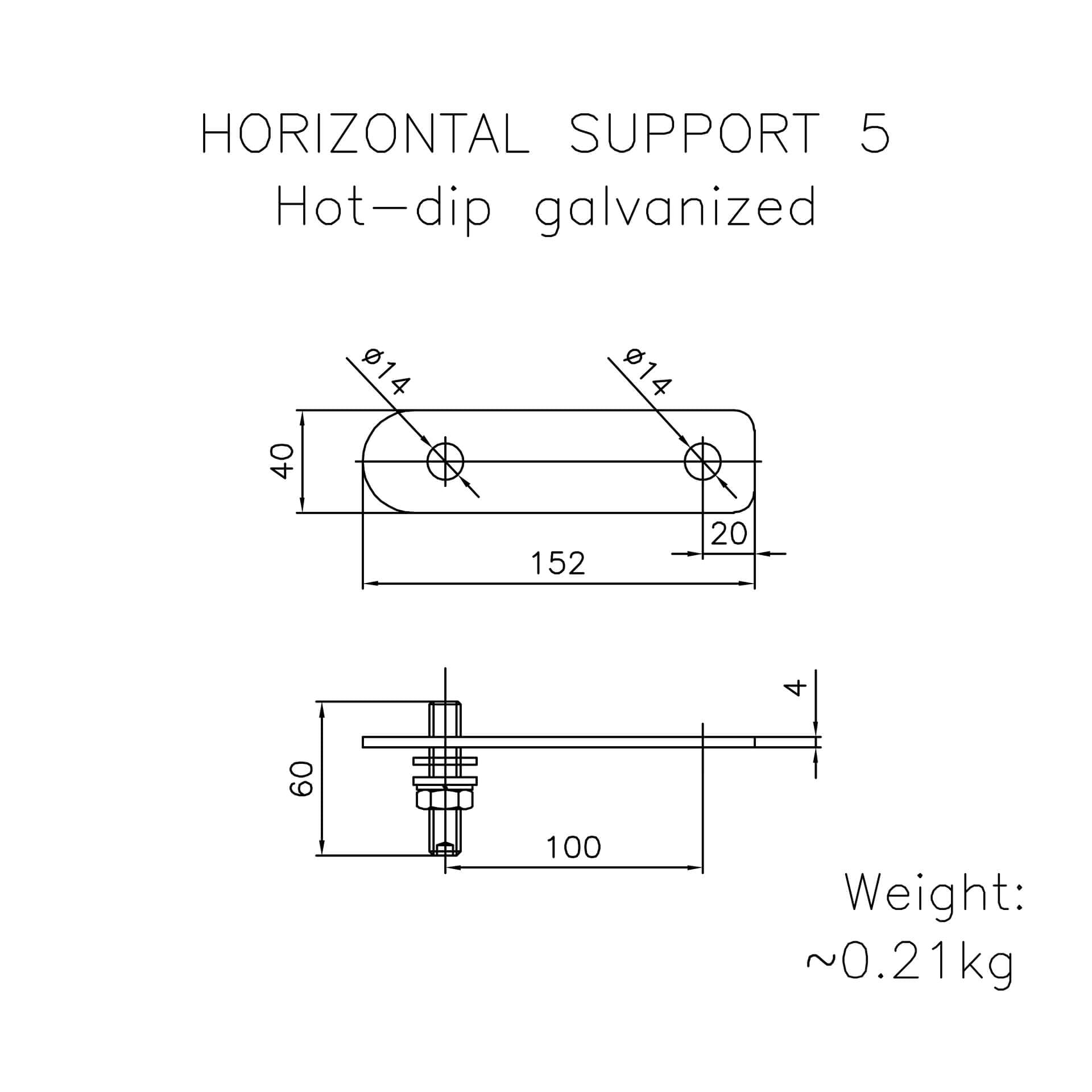

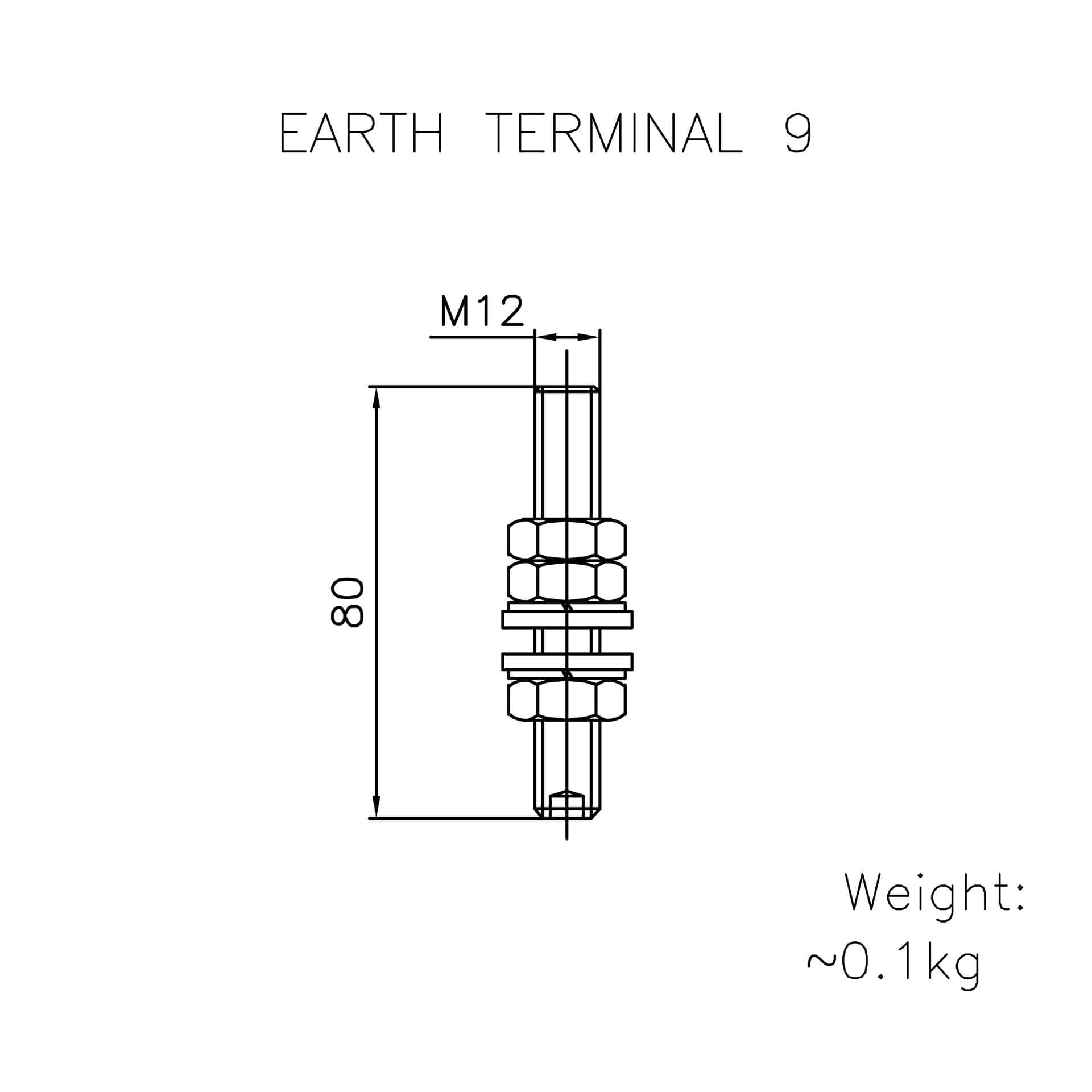

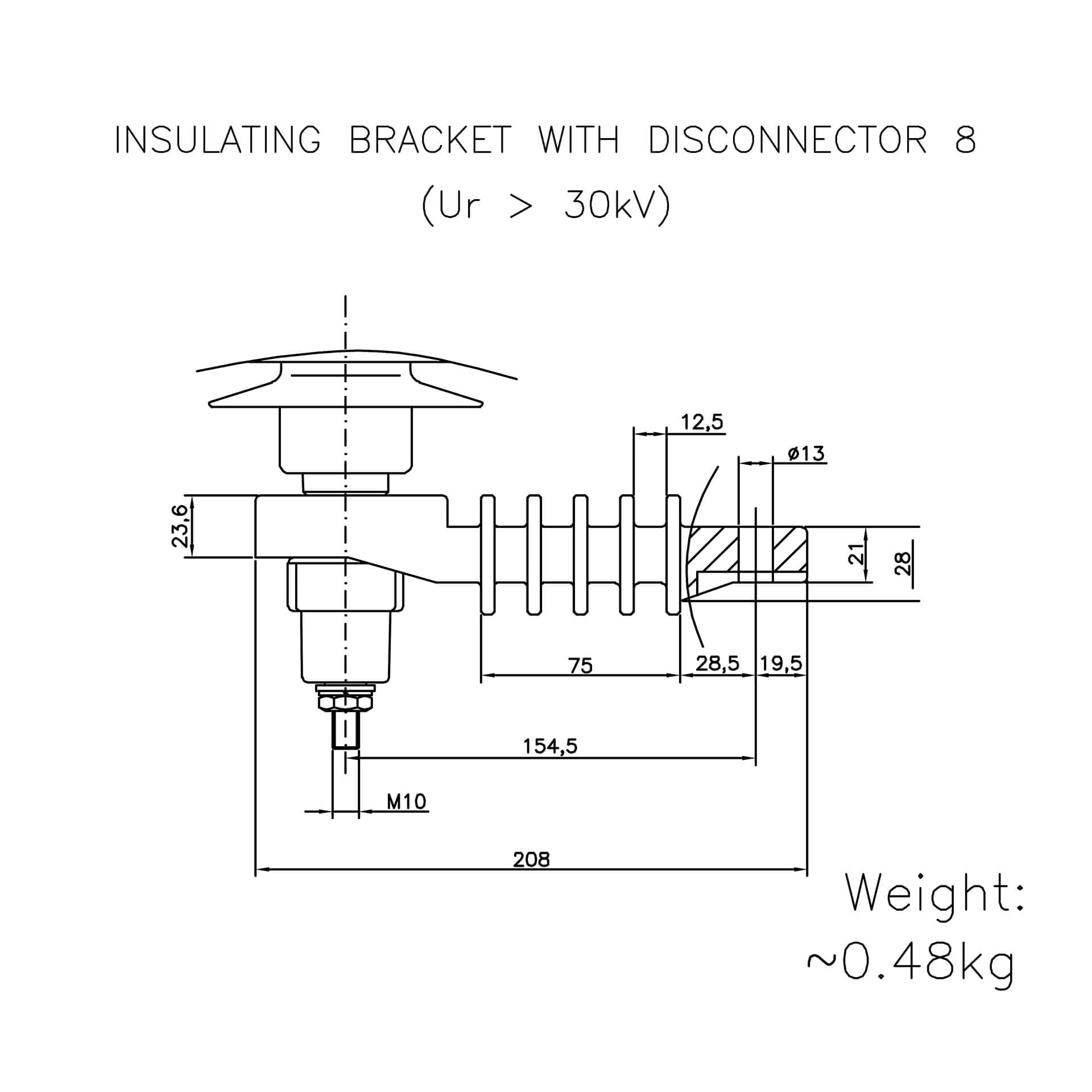

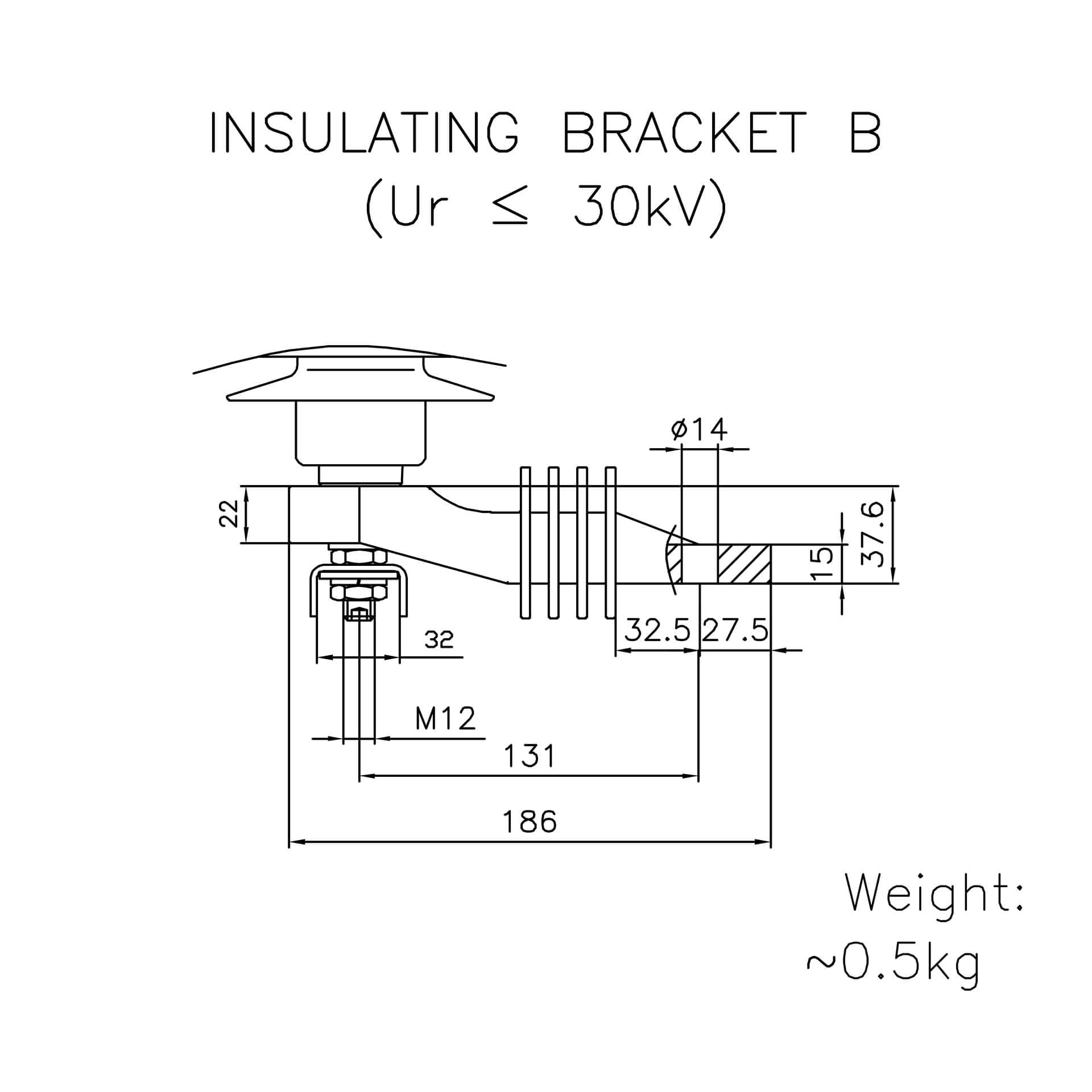

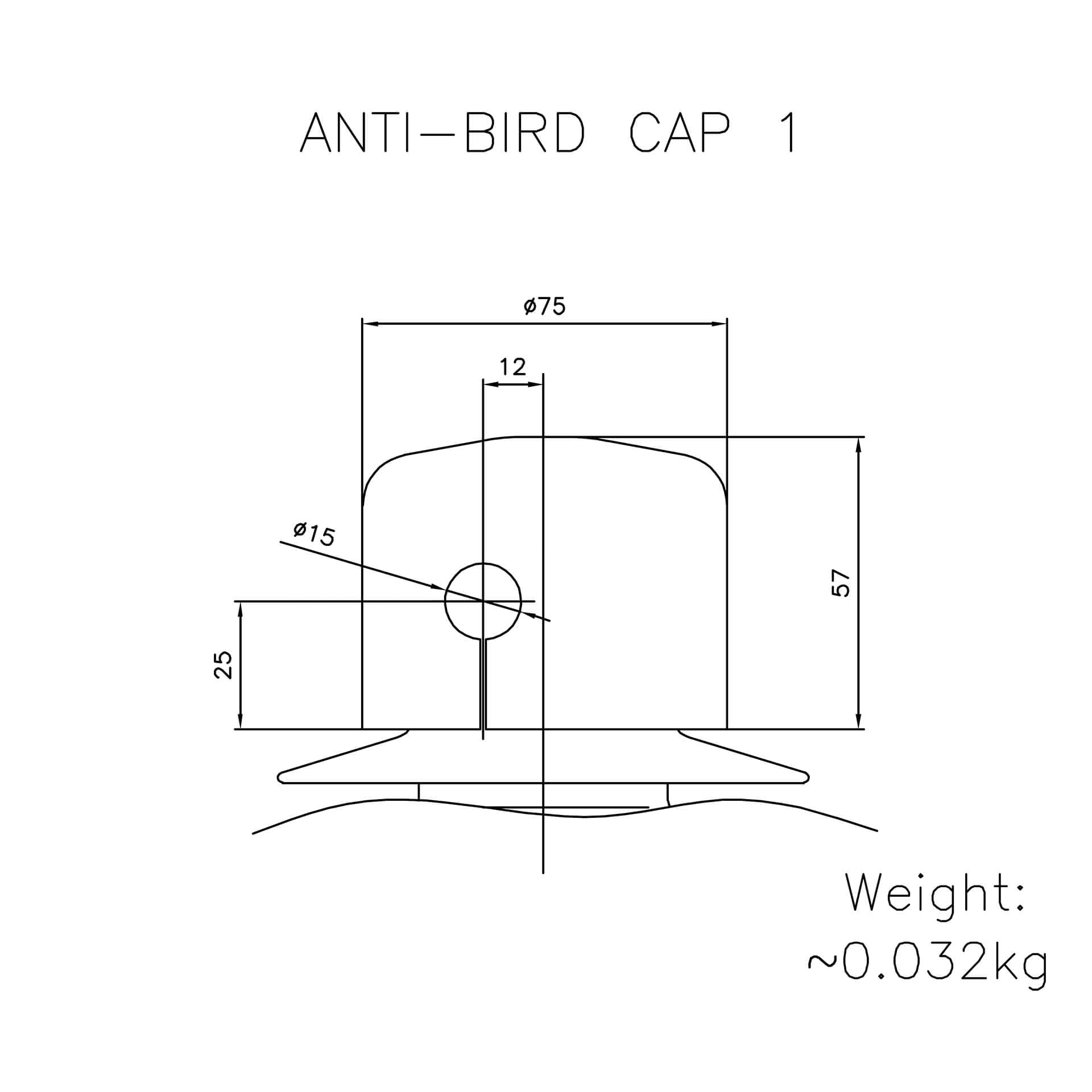

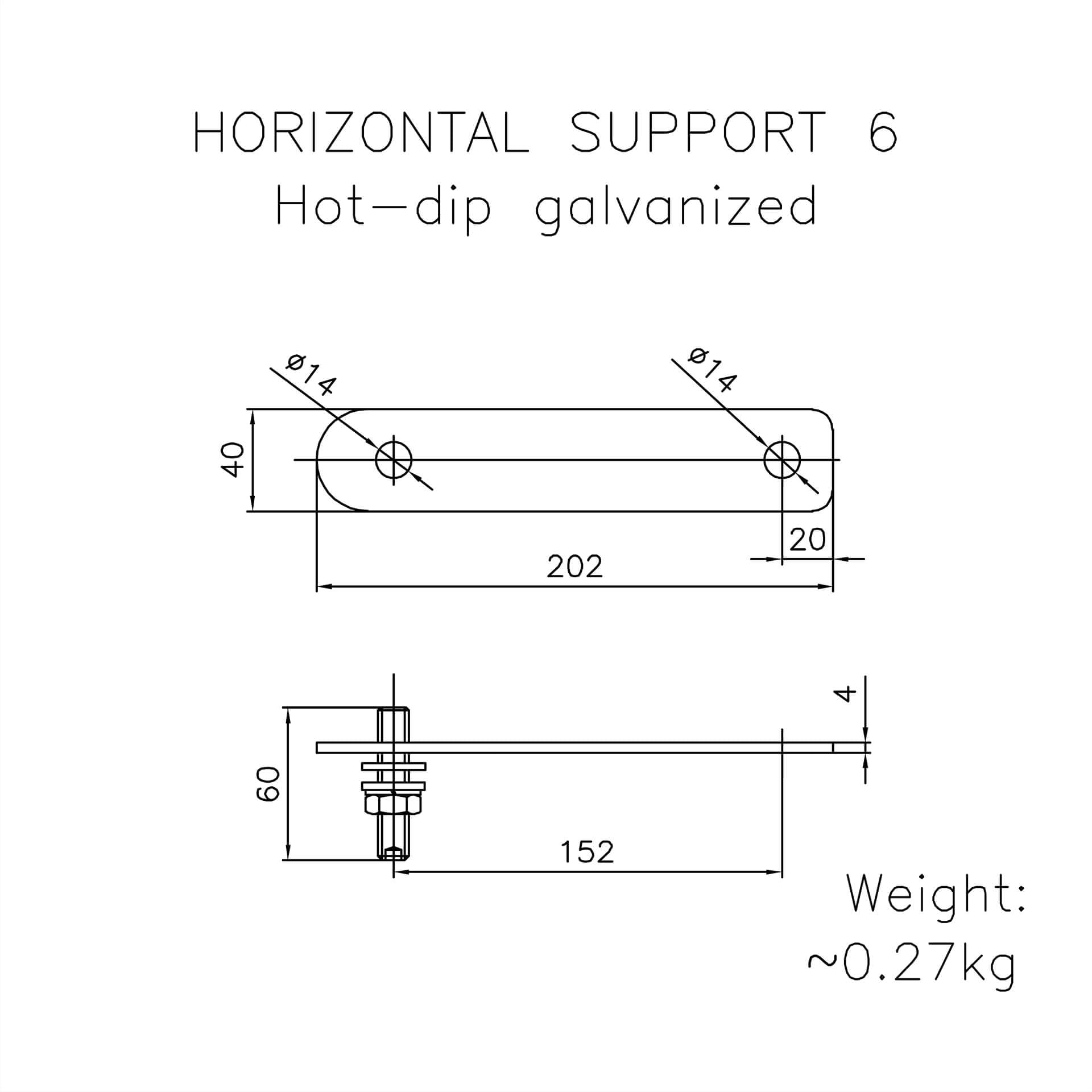

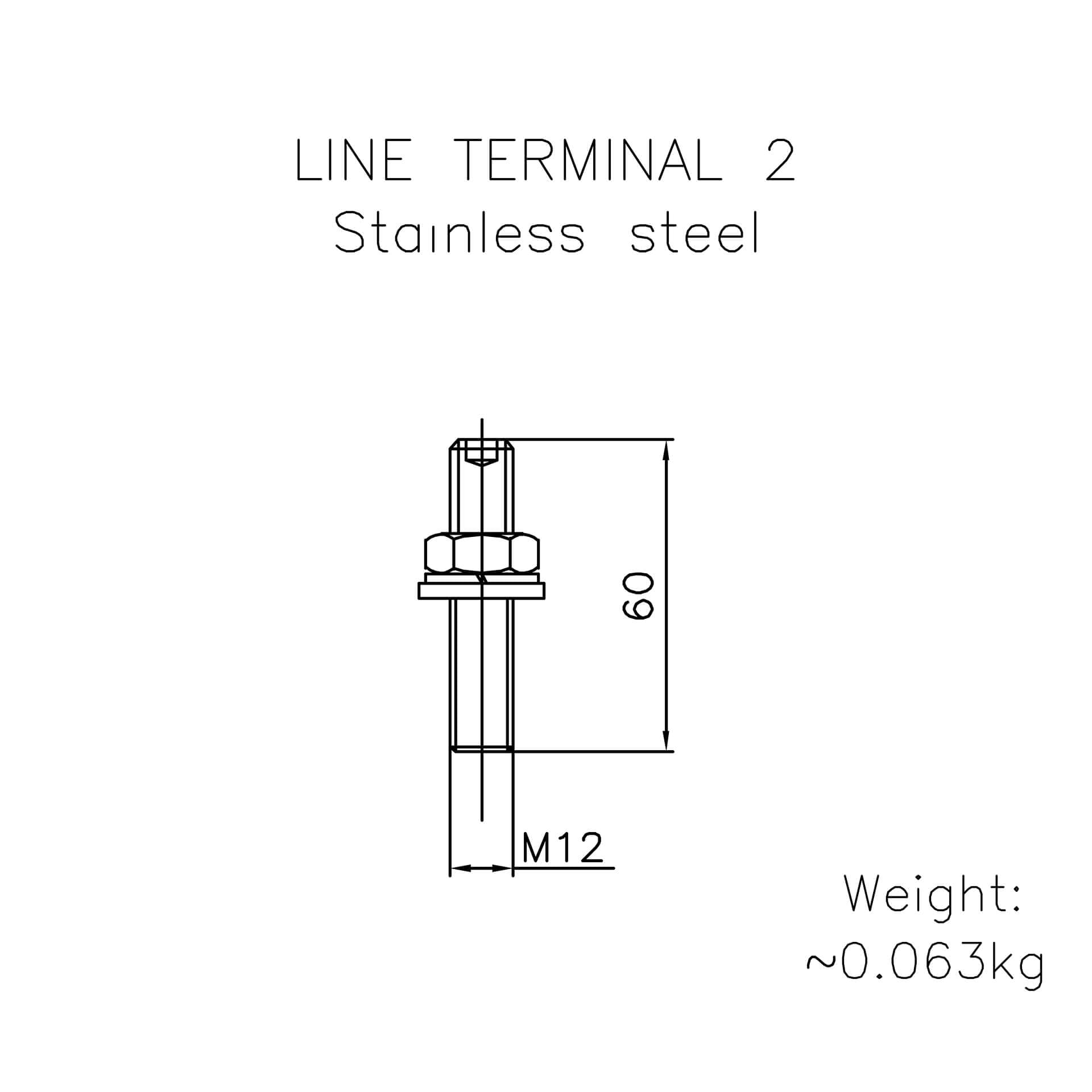

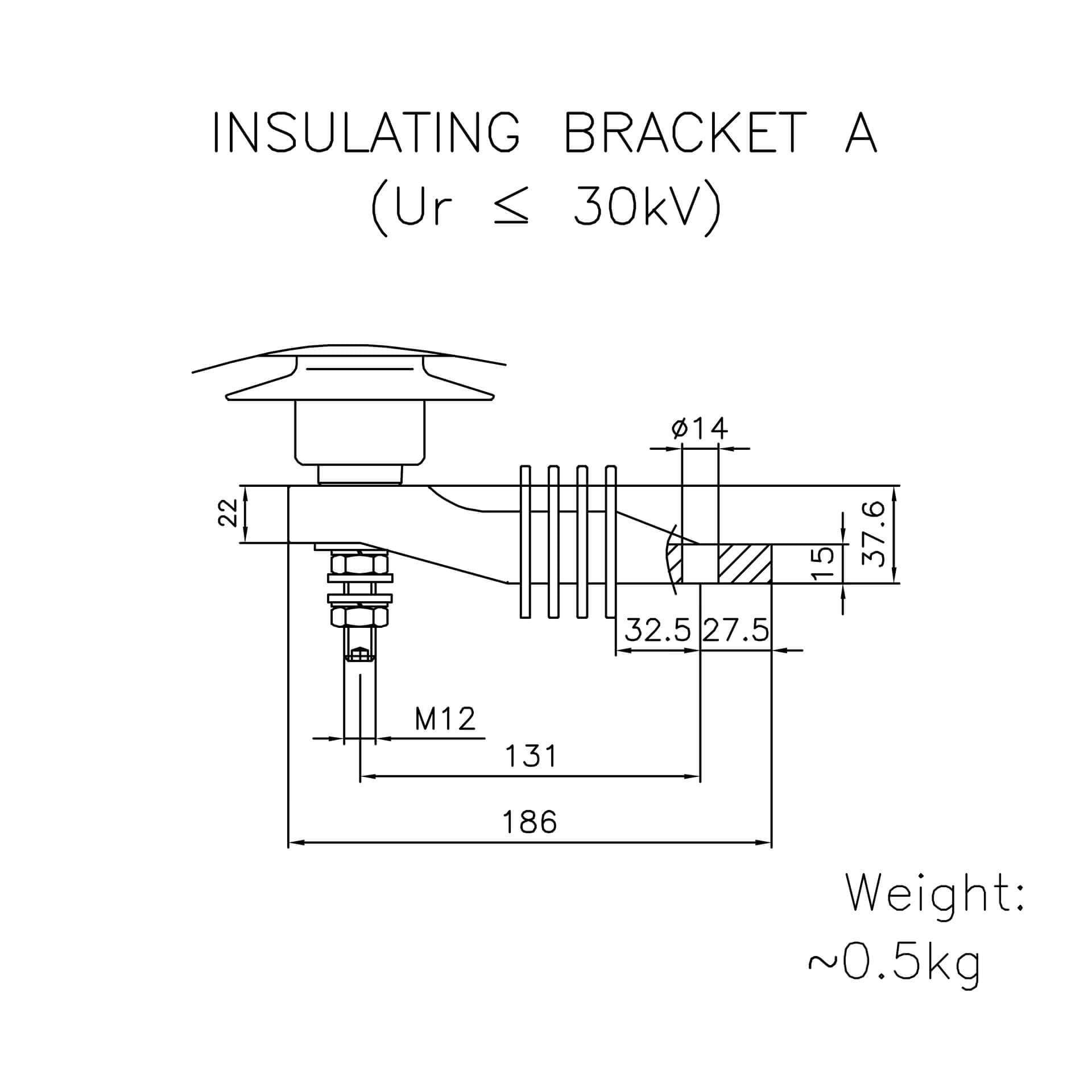

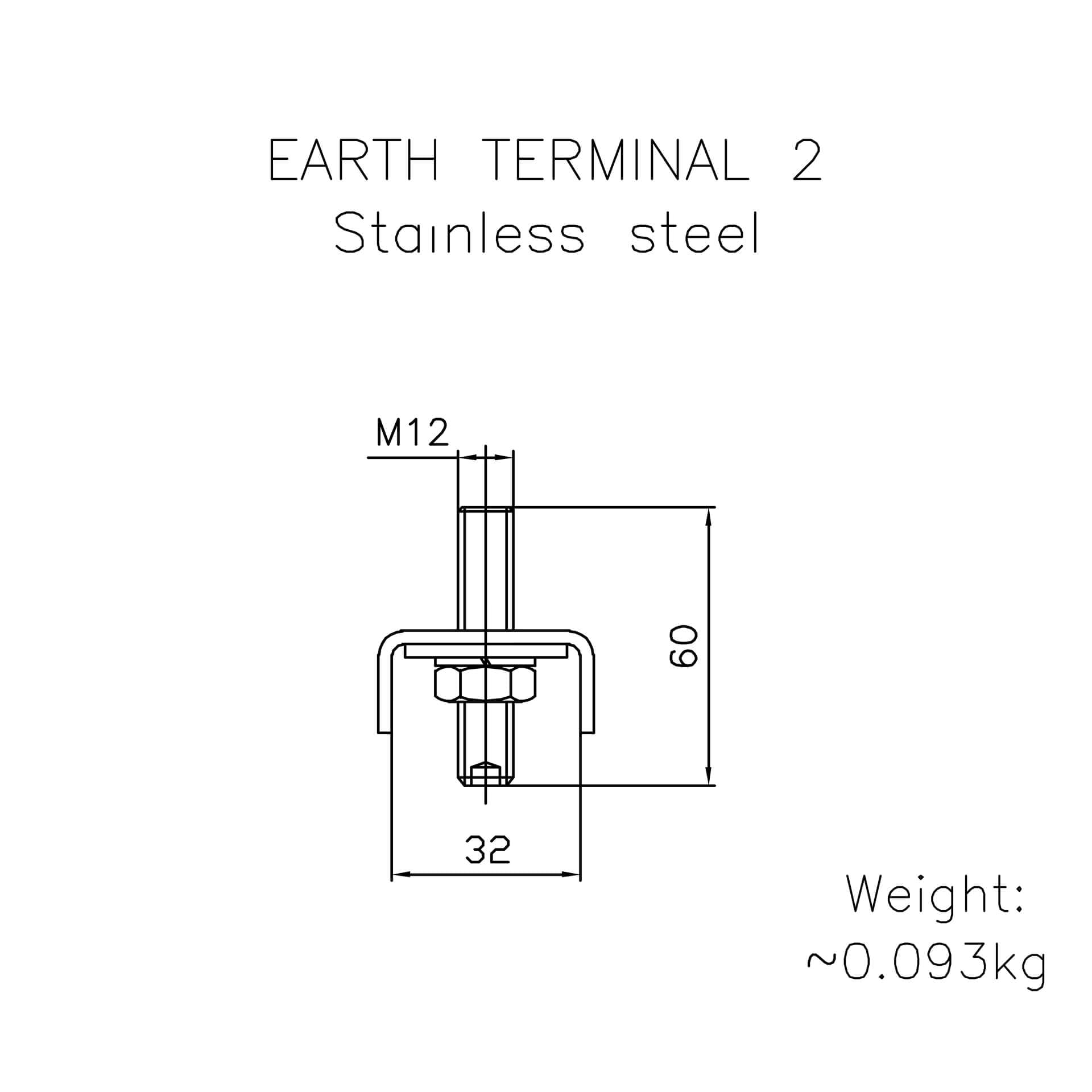

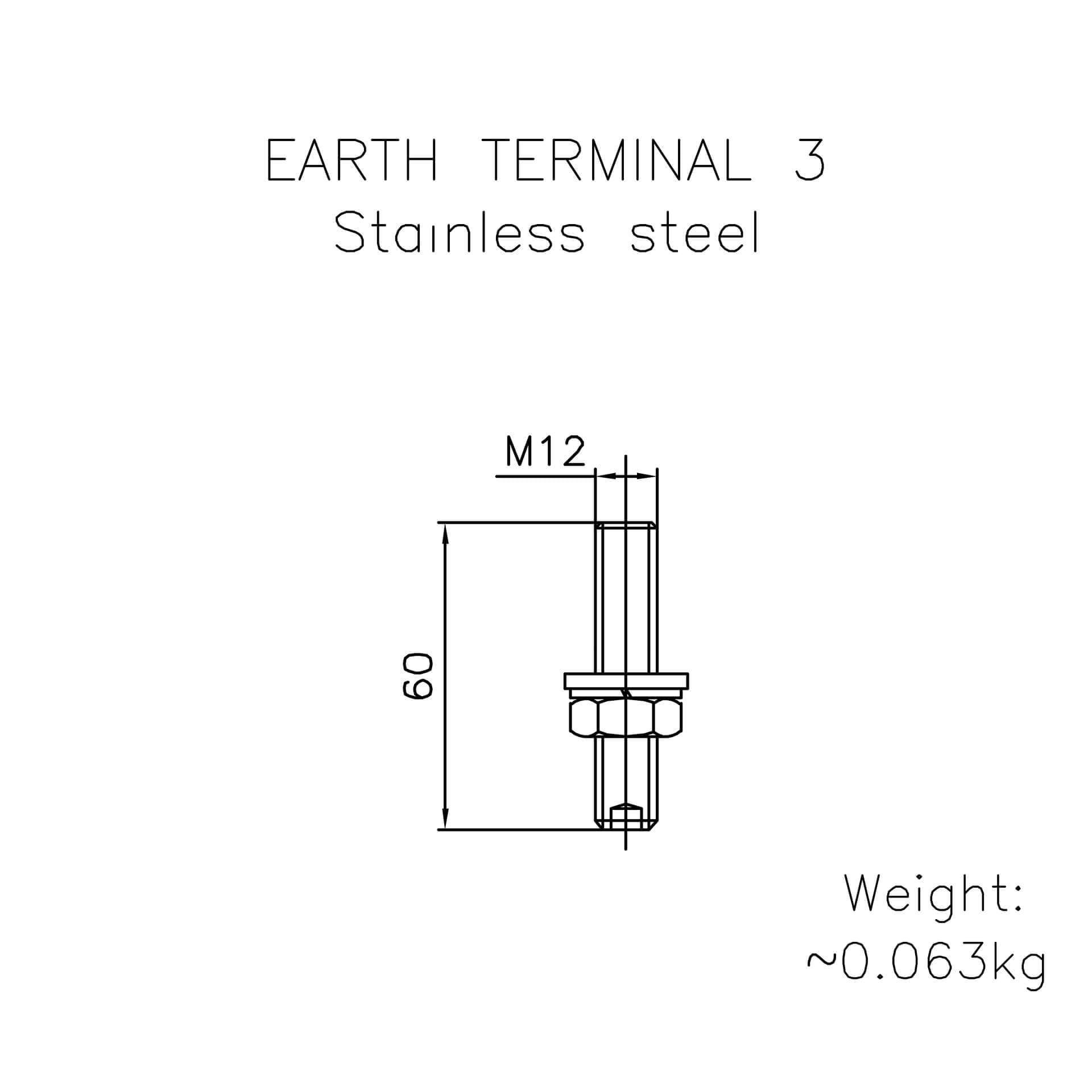

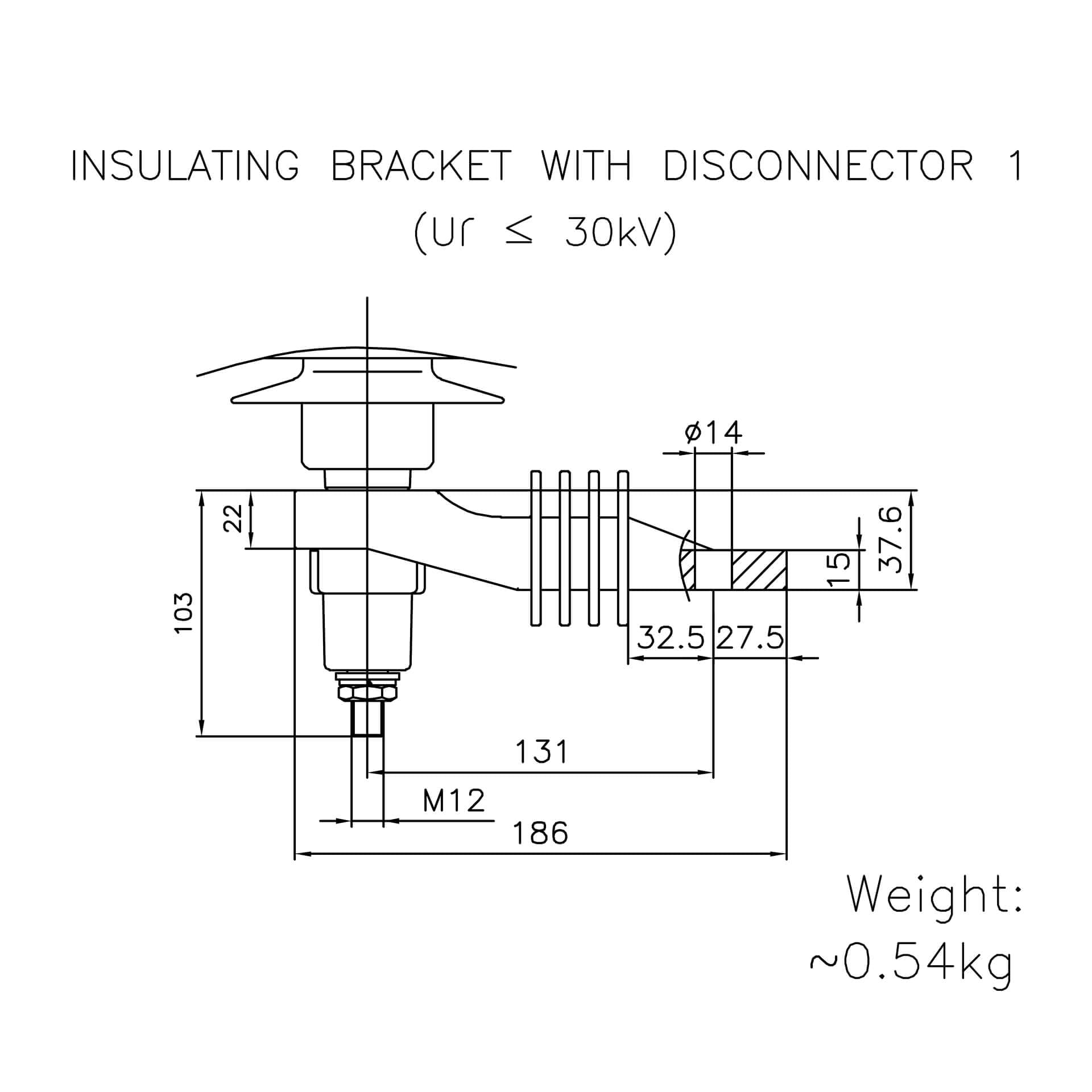

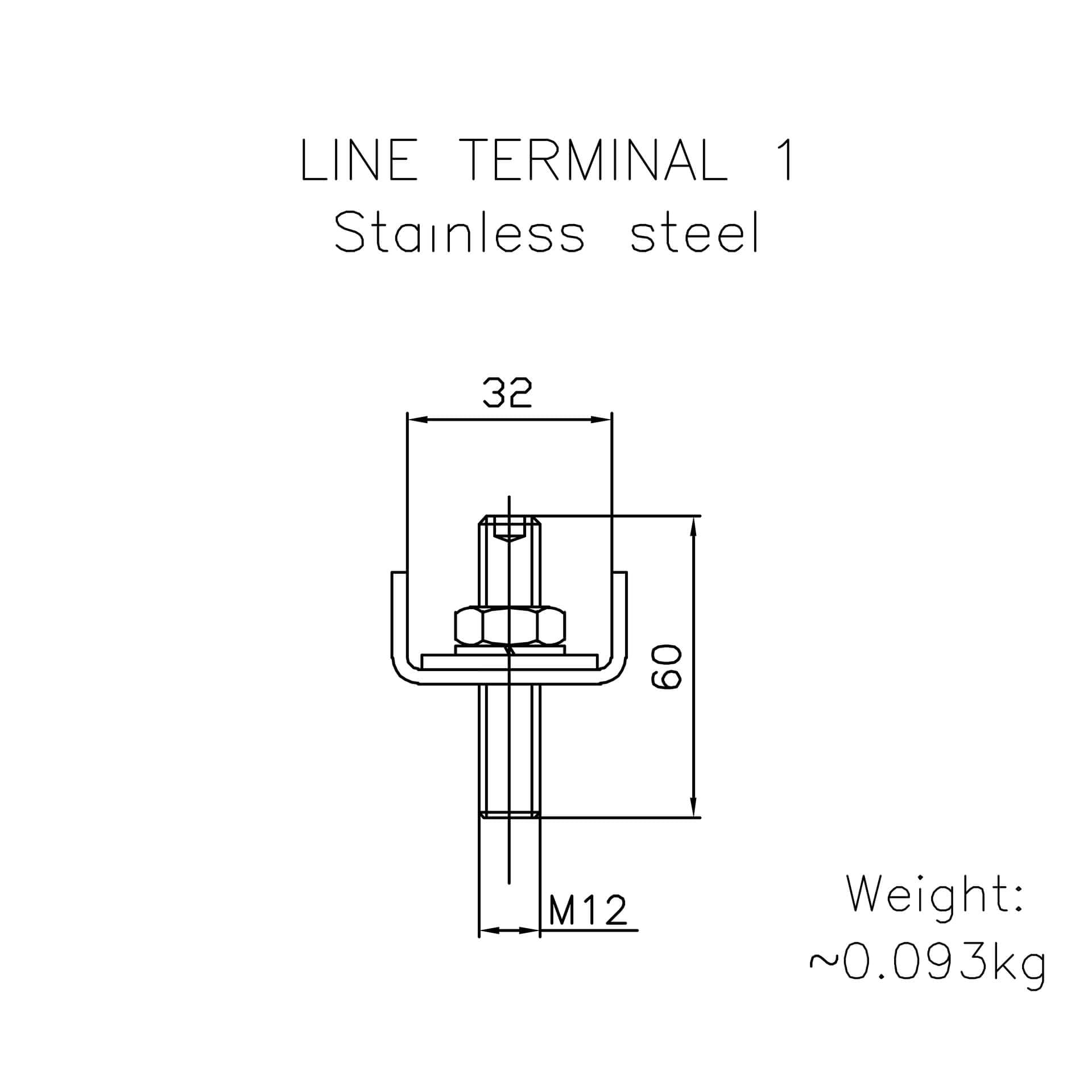

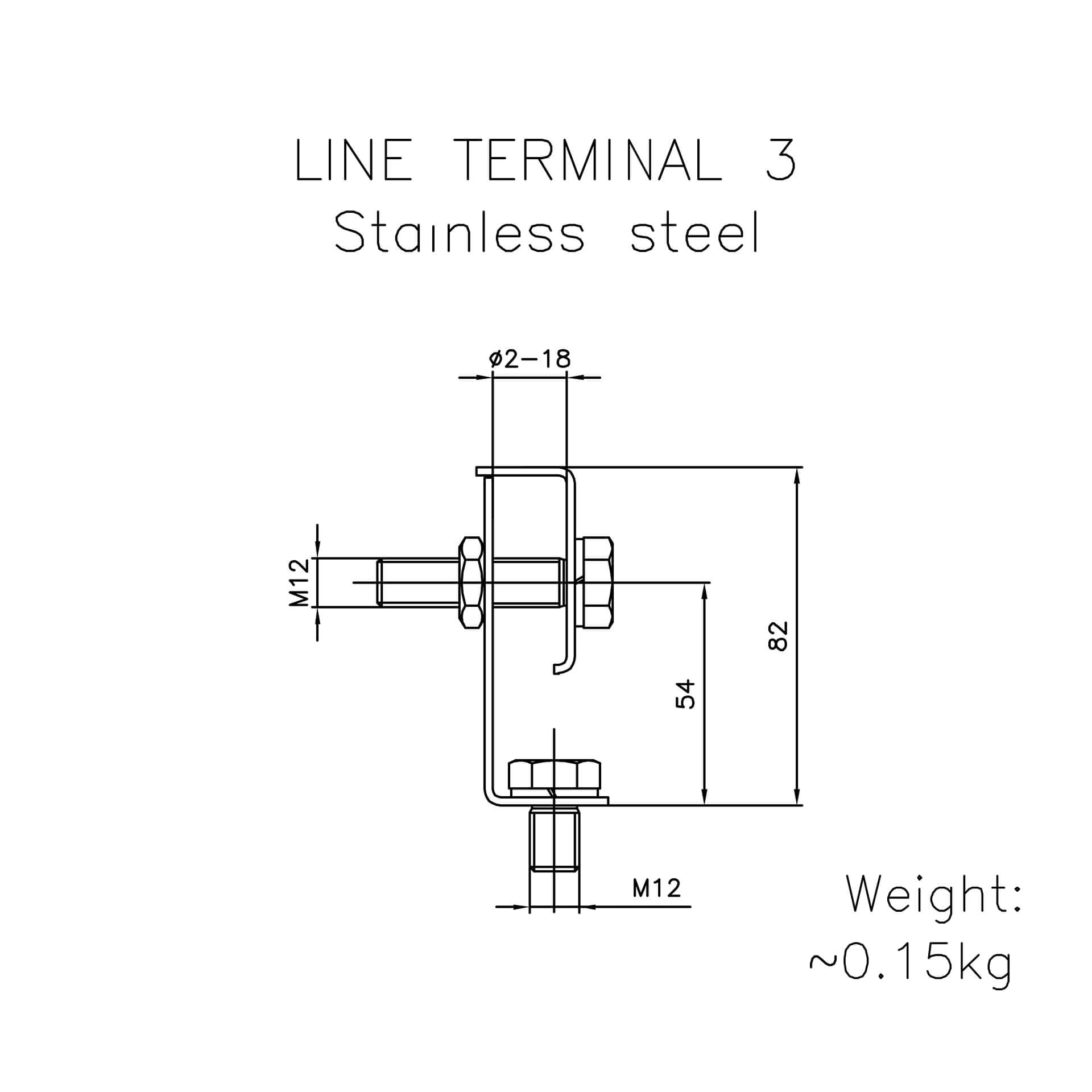

See available accessories

Equipment of any size and purpose can be supplied on request.

Product inquiry
"PROXAR-IN AC"

We can talk about this specific product, or tailor a quote to your needs / your project.
