PROXAR–IIW DC indoor surge protector in silicone casing

Application

PROXAR-IIW DC surge arresters in silicone casing are used for surge protection of DC power systems in the voltage range from 1 kV to 4.7 kV. They are designed in particular for the protection of converters, switchgear, circuit breakers, and traction vehicle equipment. PROXAR-IIW DC can also be used as a component in multi-stage surge protection against multiple lightning strikes and switching surges.

Product inquiry

Working conditions Advantages Electrical data Mechanical data Technical drawings Downloads Additional equipment Related products

Search

PROXAR-IIW DC limiters are designed for indoor use in temperate and tropical climates, at altitudes up to 1000 m above sea level. Their dimensions allow for installation in DC switchgear with minimum pole spacing. Thanks to its design, this solution does not require any special maintenance other than periodic inspections as part of the maintenance of other devices operating in the installation sites.

Highly effective surge protection
High energy resistance thanks to adequate energy absorption capacity
Stable electrical parameters even after absorbing multiple surges
High resistance to damage caused by external factors
High short-circuit resistance
Easy installation and maintenance-free operation
High durability and operational reliability in various environmental conditions

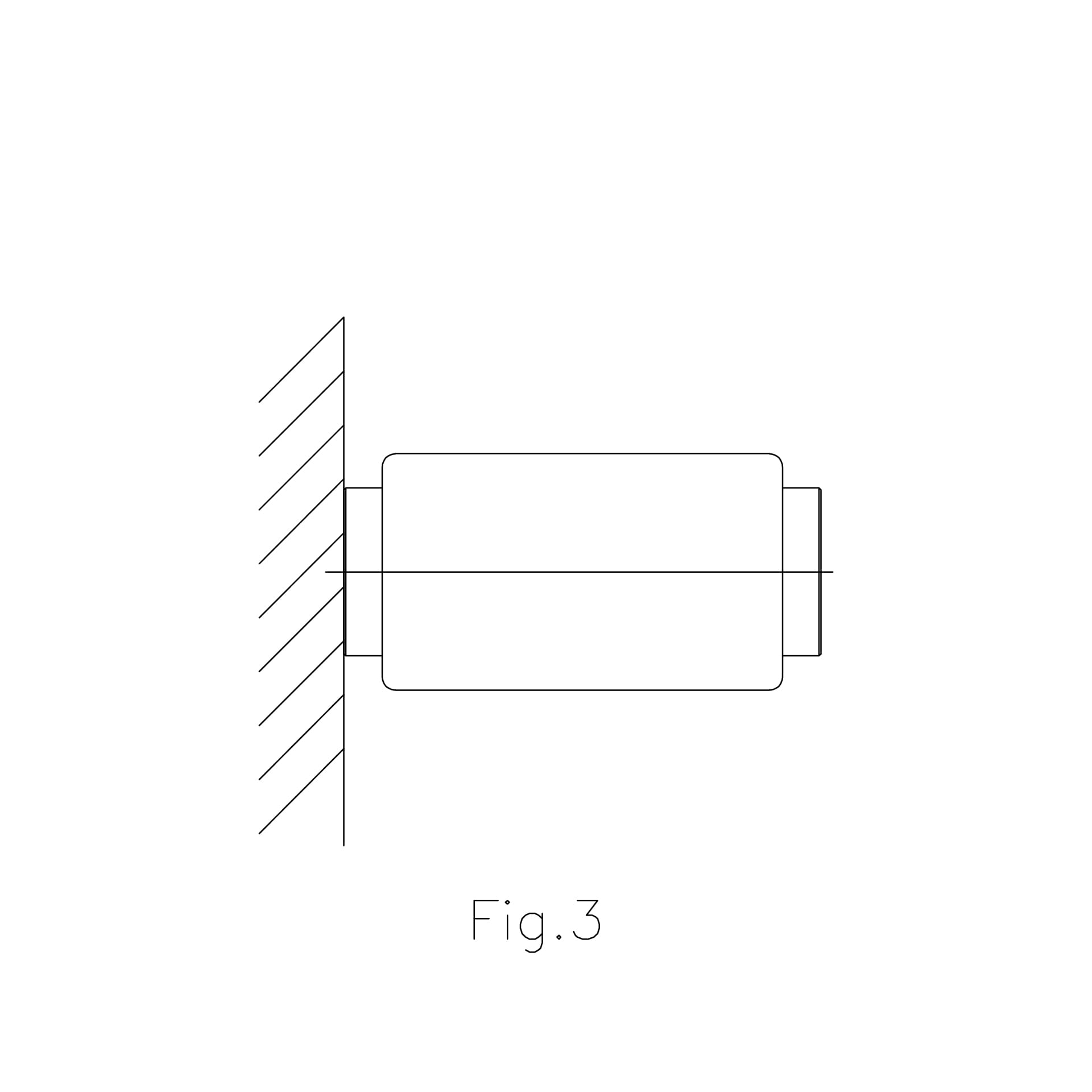

Can be installed in any position (horizontally or vertically)
Low weight and dimensions

Line discharge class according to IEC 60099-4:2009

Class 2

Line discharge class according to PN-EN 50526-1:2012

DC-A

System voltage (Us)

0.6–3 kV

Rated voltage (UcDC)

1–4.7 kV

Nominal discharge current In 8/20 µs

10 kA

High current impulse Ihc 4/10 µs

100 kA

Long duration current impulse (2000 µs)

600 A

Energy absorption capacity, 2 pulses

5.5 kJ/kV Uc

Short circuit rating

31.5 kA/0.2 s

Operating conditions

Value

Operating temperature

-45°C to +60°C

Max. altitude above sea level

1,000 m

If you require other parameters, please contact us

If you require other parameters, please contact us

SLL specified long-term load

350 Nm

SSL specified short-term load

560 Nm

Torque

100 Nm

Tensile

1,000 N

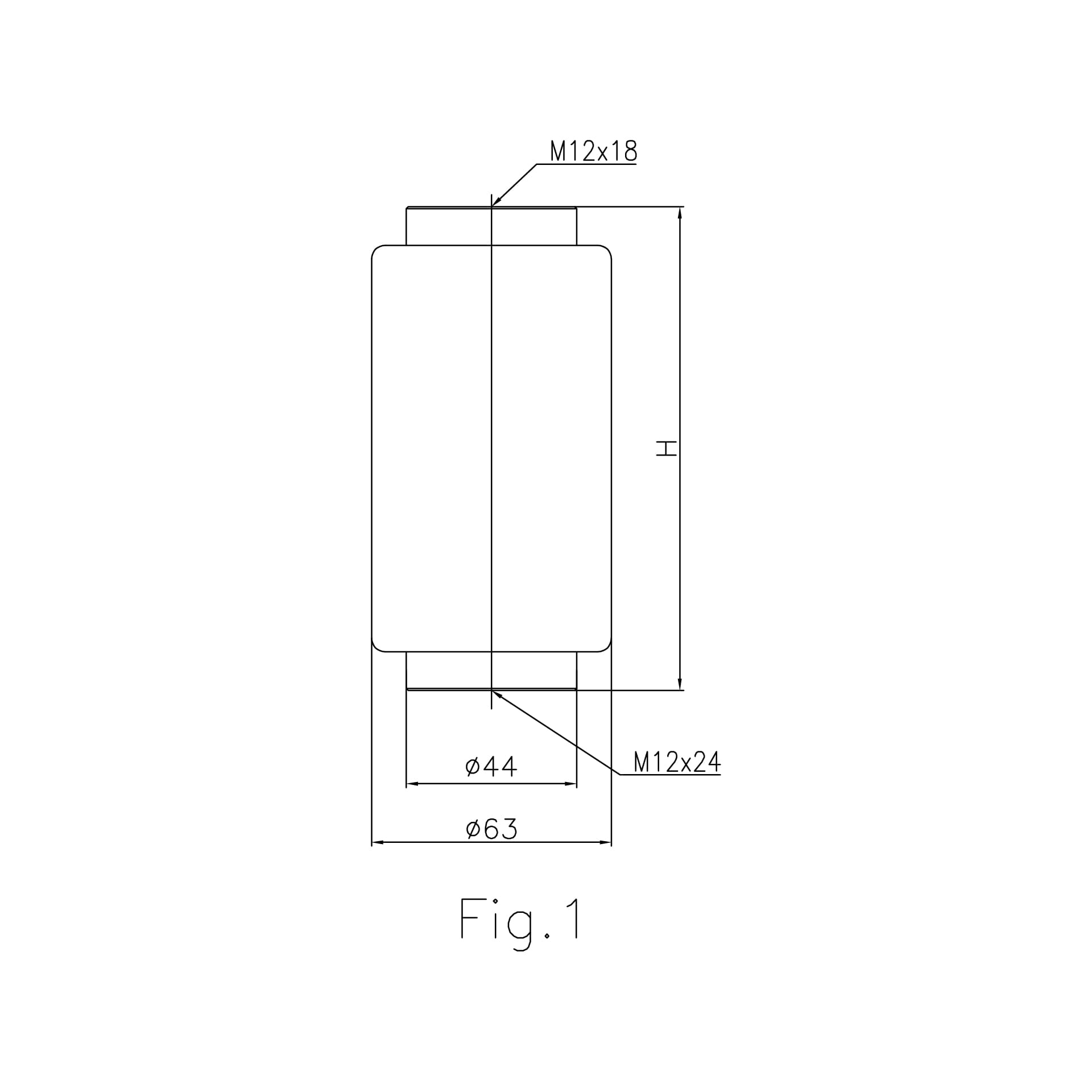

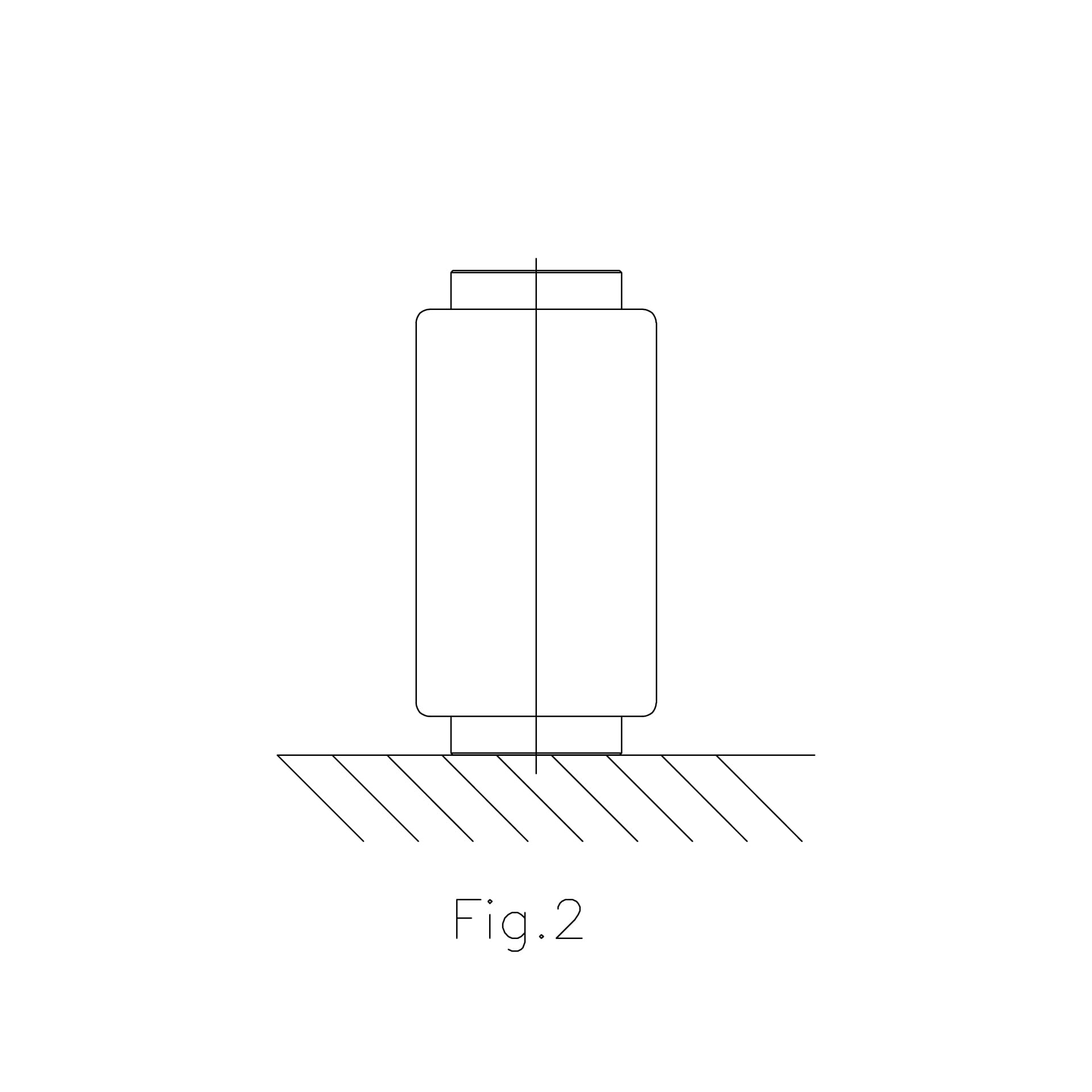

Please contact us for drawings of specific executions

Please contact us for drawings of specific executions

Data sheet Download PDF

Installation and operating instruction

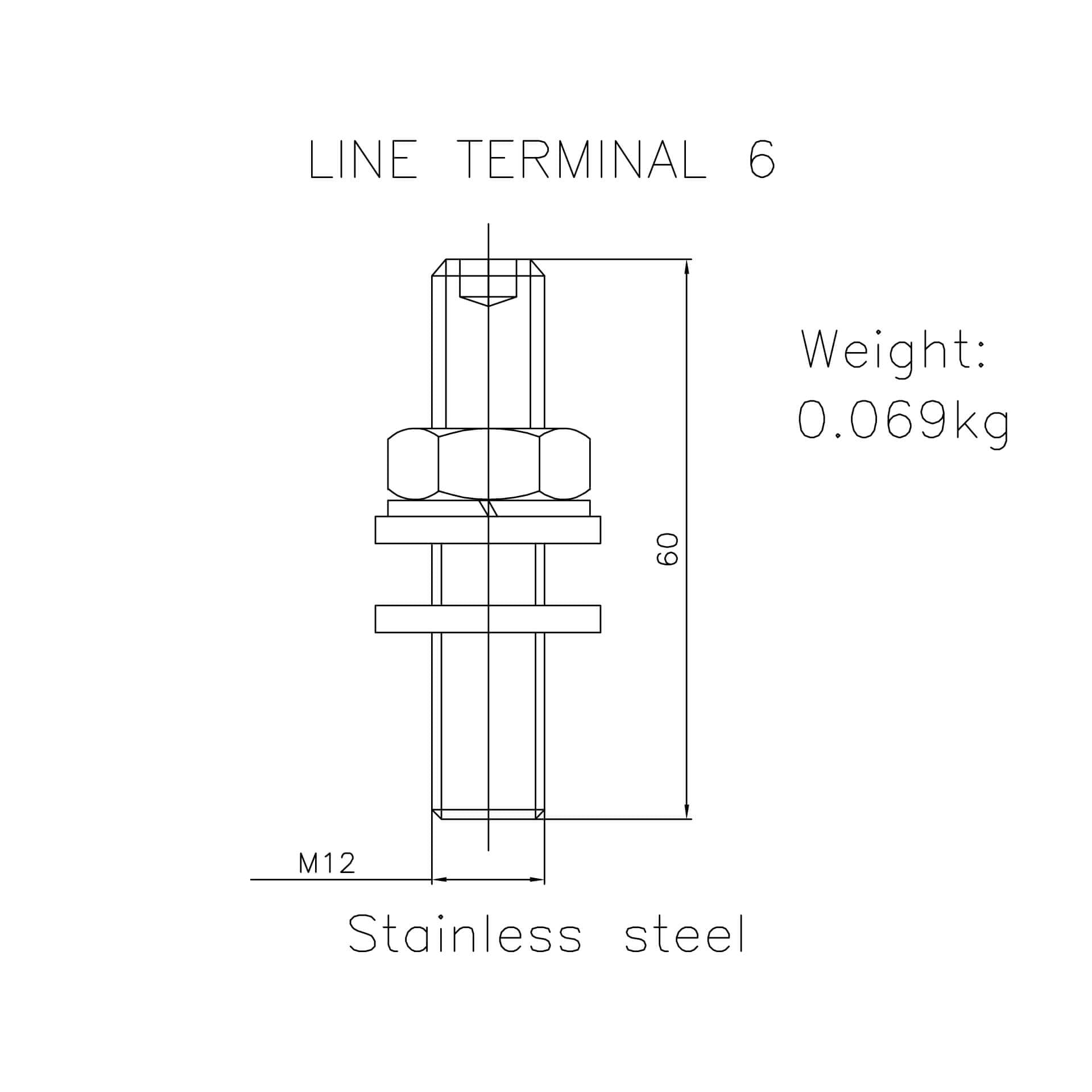

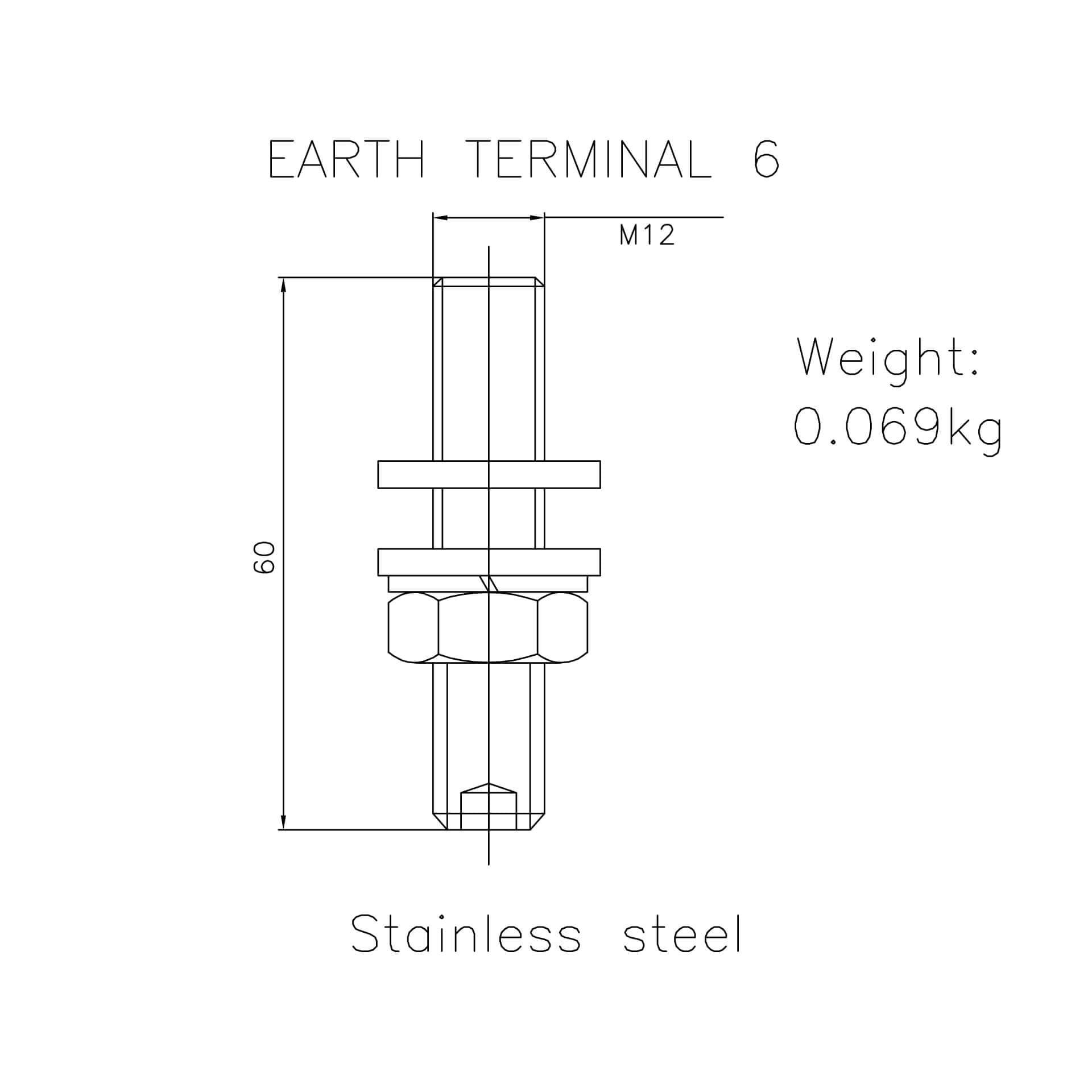

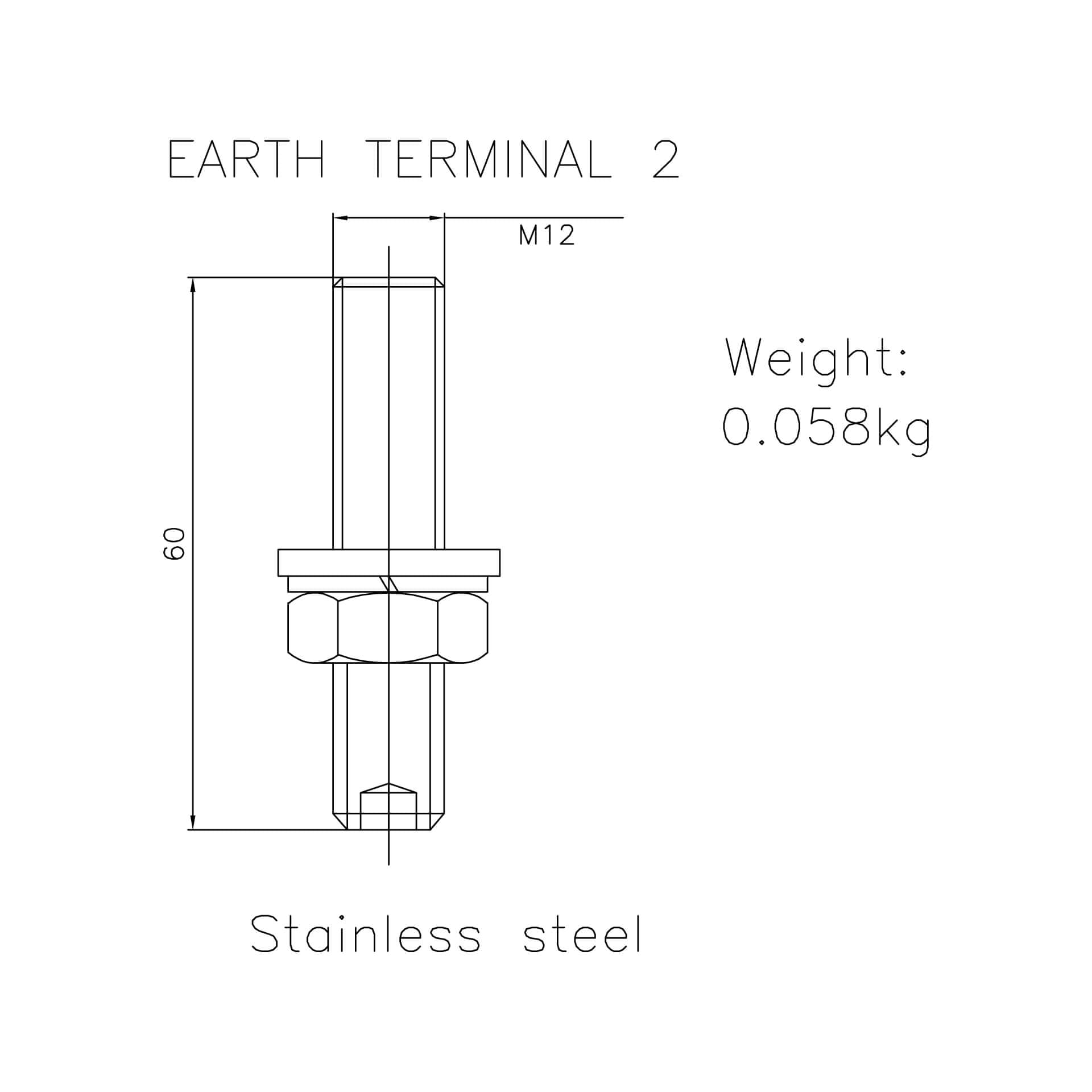

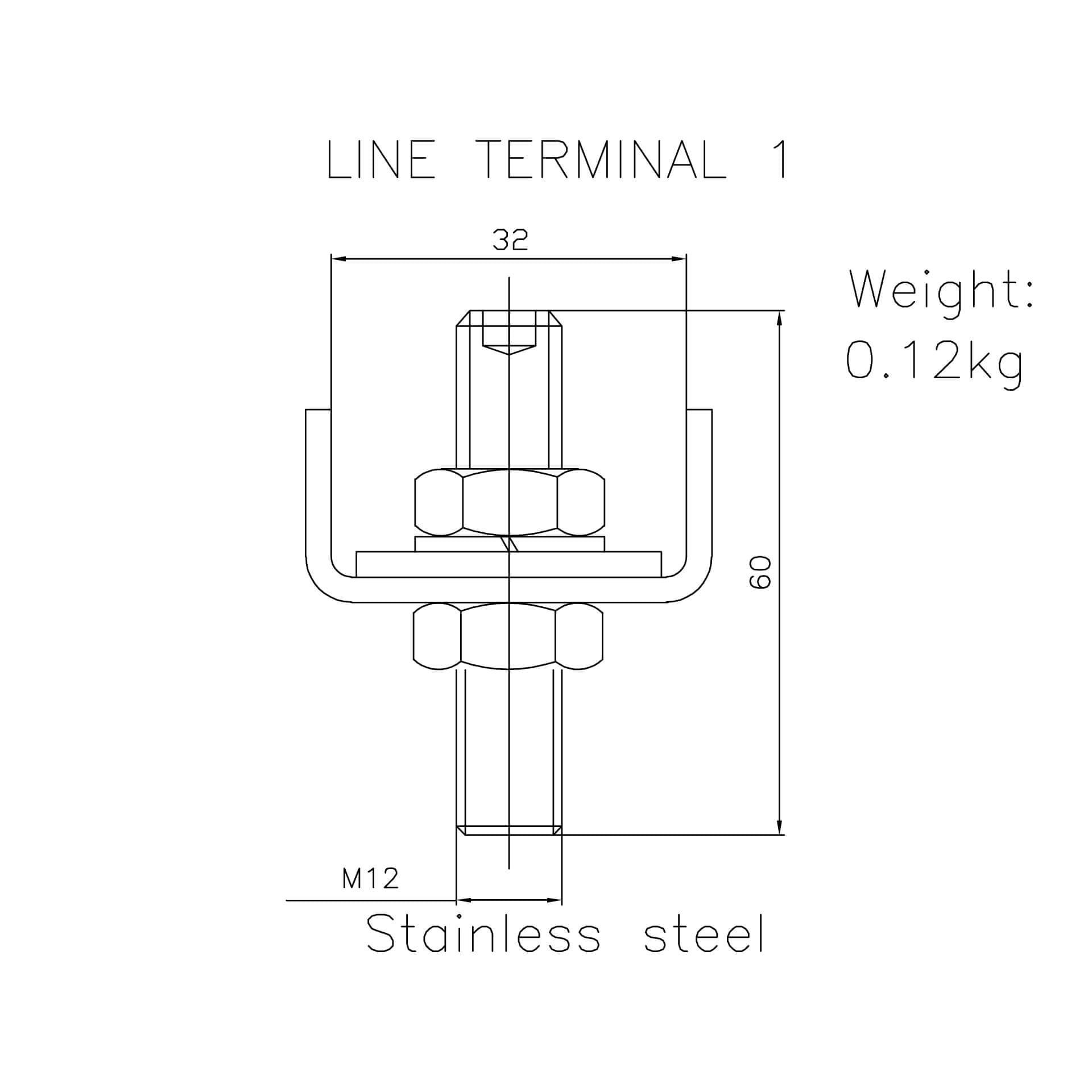

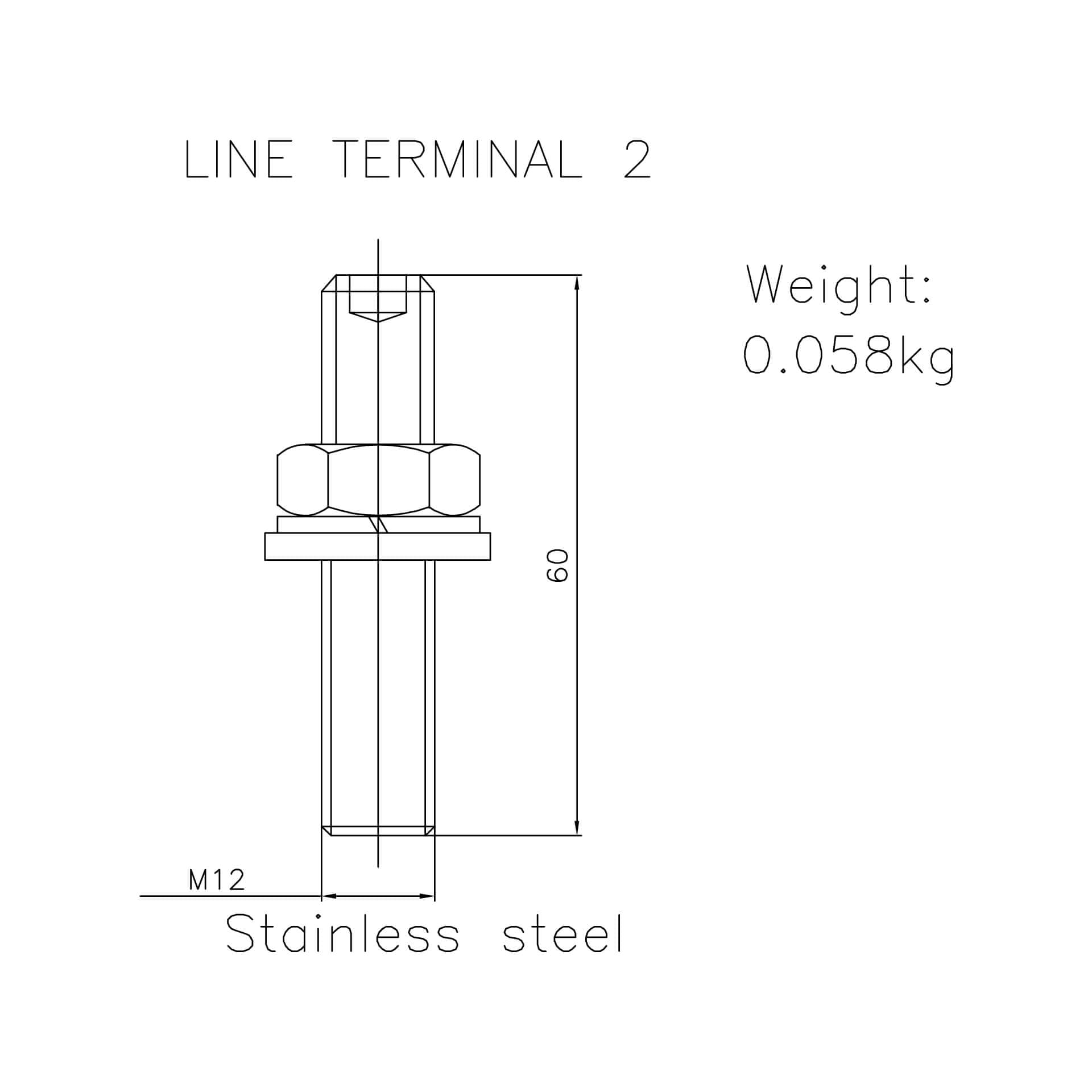

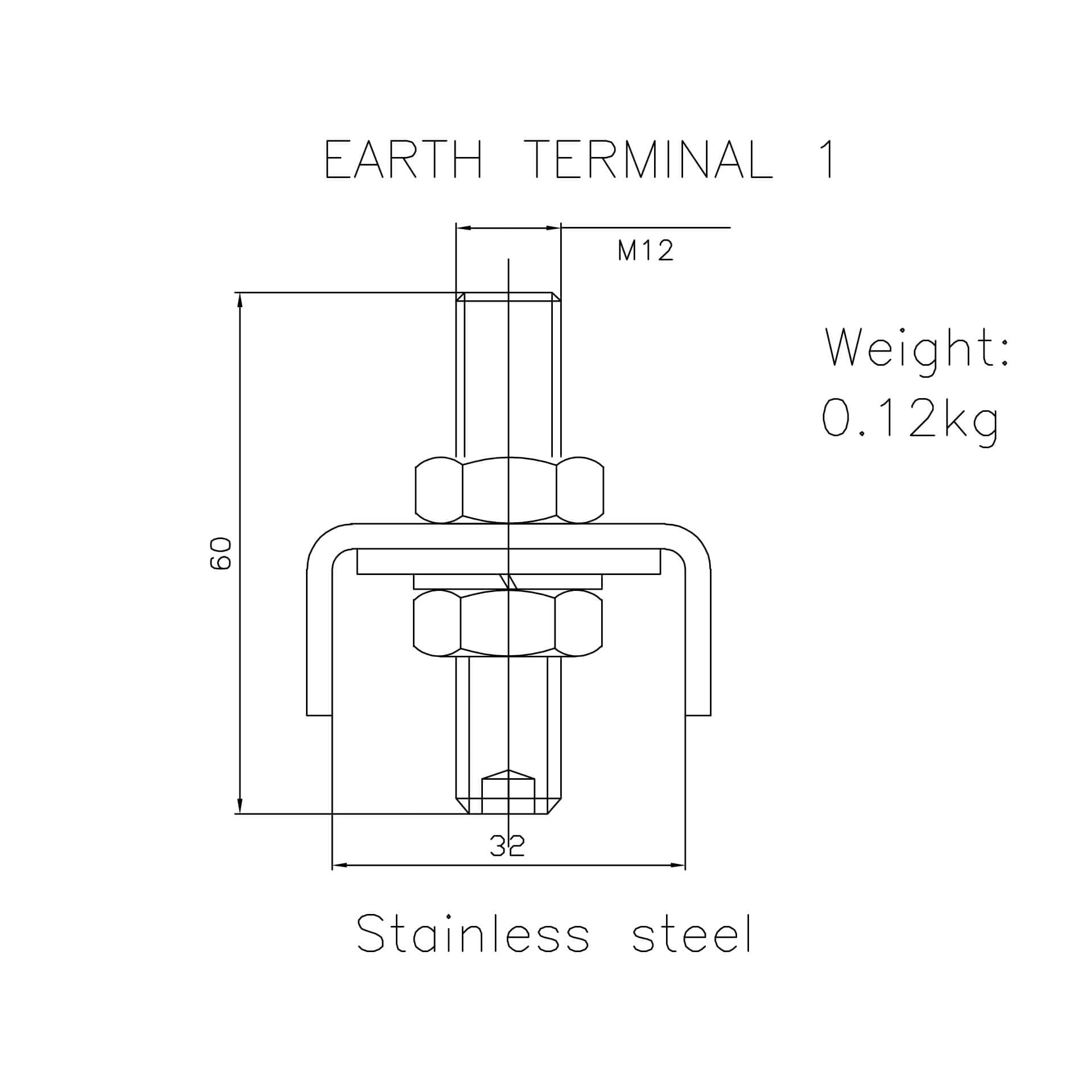

Equipment of any size and purpose can be supplied on request.
